Supports 16 GMSL2/GMSL1 cameras, up to 8MP resolution cameras, using Anfeno Z Code FAKRA Gauge Coaxial Connector
GMSL1/2 Camera Input
Supports 16-channel camera, up to 8MP resolution camera
Cable length support
Up to 40m (3Gbps) in GMSL1 mode
Up to 20m (6Gbps) in GMSL2 mode
Gauge connector
Use Anfeno Z Code FAKRA Gauge Coaxial Connector
Input Image Format
Supports RAW8 / 10 / 12 / 14 / 16 / 20, RGB565 / 666 / 888, YUV422 8 / 10bit video image formats. Remote camera can be configured via I2C
FMC interface
Standard HPC connector

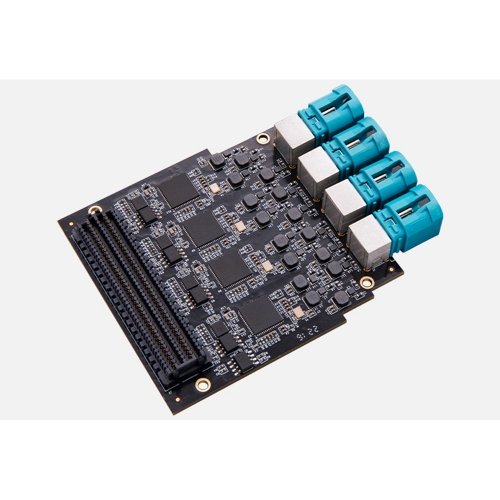

Currently, the FH9712 module can only adapt to Z7-P, Z19, Z19-P three development boards
Installation diagram for FH9712 module and Z7-P
Automatic Driving System, Data Acquisition Vehicle, Automatic Power Change Station
Autopilot System
Data Acquisition Vehicle
Automatic station change
