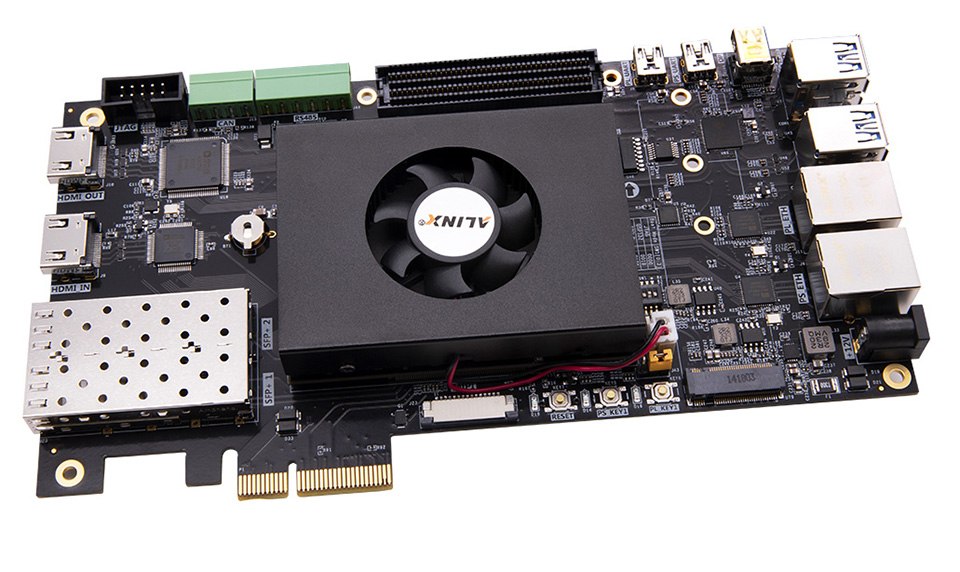

Xilinx Zynq UltraScale + MPSoC FPGA Board
Support XILINX Vitis-AI DPU, Support PCIe 3.0 x2, Support 10G Optical Fiber Communication Integrated, H.264 / H.265 Video Codec
Satisfy Network Communication, High-Speed Data Exchange and Storage Industrial Control, Deep Learning, AI Intelligence, Cloud Computing, 4K Video Transmission Processing, and Aerospace Applications
·ARM CPU
Quad Core ARM CORTEX-A53 + Dual Core ARM CORTEX-R5
·GPU
Mali™-400 MP2 GPU
·5GB DDR4
PS 4GB DDR4、PL 1GB DDR4
·FLASH RAM
8GB eMMC FLASH、256Mbit QSPI FLASH
Techinal Support
Development Software Version:Vitis 2020.1 Linux Version: petalinux 5.4.0-xilinx-v2020.1All Doucments Saved in Dropbox, after buy the board, email to get it.
Course_S0_Development Environment
01. Vitis Installation
02. Install virtual machine and Ubuntu system
03. Install Linux version of Vitis software on Ubuntu
04.Petalinux tool installation
05. NFS service software installation
06. QT Creator development environment
07. Linux Common Commands
Remark: Vitis 2020.1
Course_S1_FPGA Experiment Tutorial
01. Introduction to Ultrascale+ MPSoC
02. FPGA Board Hardware Introduction
03. Introduction to Verilog basic modules
04. PL's "Hello World" LED experiment
05. PLL Experiment Under Vivado
06. FPGA on-chip RAM read and write test experiment
7. FPGA on-chip ROM read and write test experiment
08. FPGA on-chip FIFO read and write test experiment
09. Key Experiment in Vivado
10. PWM Breathing Light Experiment
11. UART Experiment
12. RS485 Experiment
13. PL side DDR4 read and write test
14. HDMI Output Experiment
15. HDMI Character Display Experiment
16. HDMI pass-through ILA Debugging Experiment
17. GTX Transceiver Bit Error Rate Test IBERT Experiment 226 experiment
Course_S2_Vitis Application Tutorial
01. Experience ARM, bare metal output "Hello World"
02. PS RTC Interrupt Experiment
03. PS MIO Experiment
04. PS Side UART Read and Write Control
05. PS Side Use of CAN
06. PS Side Use of I2C
07. PS Side Use of Display Port
08. PS Side SD Card Read and Write
09. PS Side Use of Ethernet (LWIP)
10. PS Side Remote Update QSPI Flash by Ethernet
11. Use of System Monitor
12. PS Side Use of EMIO
13. PL Side Use of AXI GPIO
14. PL Side RS485 Test
15. PL Side Use of Ethernet
16. Custom IP experiment
17. Use of Dual Core AMP
18. Use of “Free RTOS” under ZYNQ
19. PL Read and Write PS DDR Data
20. Realize PS and PL Data Interaction through BRAM
21.Use VDMA to drive HDMI display
22.Use VDMA to Drive HDMI Acquisition and Display
23. MIPI Acquisition and DP Display Based on AN5641 Module
24.MIPI Acquisition and HDMI Display Based on AN5641
25. PCIe Test
Course_S3_Linux Basic Tutorial
01. Customizing Linux with Petalinux
02. Program hello world
03. gpio Control LED
04. Add Boot Scripts and User Files
05. SD Card Root File System
06. QT and OPENCV Cross-Compilation Environment
07. Use Vitis to Develop Linux Programs
08. Vitis Accelerates Basic Platform Creation
09. NVMe SSD operation under Linux
Remark: Linux Version petalinux 5.4.0-xilinx-v2020.1
Course_S4_Linux Driver Tutorial
01. Character Device
02. A New Way of Writing Character Devices
03. Device Tree and of Function
04. pinctrl and gpio Subsystem
05. Concurrent Processing
06. gpio input
07. Timer
08. Interrupt
09. Blocking IO
10. Non-Blocking IO
11. Asynchronous IO
12. Platform
13. Platform and Device Tree
14. MISC device driver
15. Input Subsystem
16. pwm Drive
17. I2C Driver 18. USB Driver
19. SPI Drive
20. Uart Driver
21. Block Device Driver
22.NIC driver
23. DMA Driver
24. Multi-touch screen driver
25. LCD Drive
Course_S5_Linux Application Development Tutorial
01. Building a Minimalist Working Environment
02. Hello World with Remote Debugging
03. OpenCV Edge Detection
04. OpenCV+Qt Face Detection
05. GStreamer's Camera Display
06. Qt+DRM+Gstreamer Camera Display
07. Qt+GPU Camera Display
08. Linux Register Operation
Course_S6_HSL Tutorial Tutorial
01. Getting to Know Vitis HLS
02. Getting Started
03. HLS Interacts with CPU Registers
04. How to use the built-in Functions in the xfopencv Library
05. Image RGB to Grayscale Conversion
06. Image RGB to YCrCb
07. Image Morphological Filtering
08. Image overlay
09. Image Contrast Adjustment
10. Corner Detection
11. SOBEL operator realizes edge detection
12. Canny Operator Realizes Edge Detection
13. How to Implement opencv Simulation with vitis HLS
Course_Vitis-AI Basic
01. Docker Environment Construction
02. Vitis-AI Development Process
03. Neural Network Training based on Keras Framework
04. Debugging Tools
H.264/H.265 Codec
01. Environment Construction
02. Preparation for Program Operation
03.Video codec
key Features
·Core Board SOM
*Core Board, Click to Buy >>
·FPGA Board
PRODUCT PARAMETERS
Board Parameter Comparison
FPGA Board
AXU4EV-P
FPGA Chip
XCZU4EV- 1SFVC784I
Processor Core
ARM Cortex™-A53 x4 Main Frequency 1.2GHz ARM Cortex™-R5 x2 500MHz
RAM
PS DDR4，4GB 64bit, 2400Mbps
PL DDR4，1GB 16bit, 2400Mbps
Speed Grades
-1
Chip Level
Industrial Grade
Chip Working Temperature
-40°c~85°c
Logic Cells
192K
CLB Flip-Flops
176K
Look Up Tables (LUTs)
88K
Block RAM
4.5Mb
DSP Slices
728
eMMC FLASH
8GB
QSPI FLASH
256Mbit
Video Codec
H.264 / H.265
PL PCIe Gen3
4
Transceiver
12.5Gb/s x4
HP I/O
96
HD I/O
84
Interface and Function
DDR4
PS DDR4, 4 Pieces of 1G DDR4, 4GB Total, 64bit, Data Speed 2400Mbps PL DDR4, 1 Piece of 1G DDR4, 16bit, Data Speed 2400Mbps
QSPI Flash
256 Mbit QSPI Flash, Used as FPGA User Data Storage
EMMC Flash
8GB, Used as Large-Capacity Storage System
DP Interface
Mini Display Port up to 4K@30Hz or 1080P@60Hz Output (ALINX customized DP to HDMI cable, need to buy Separately )

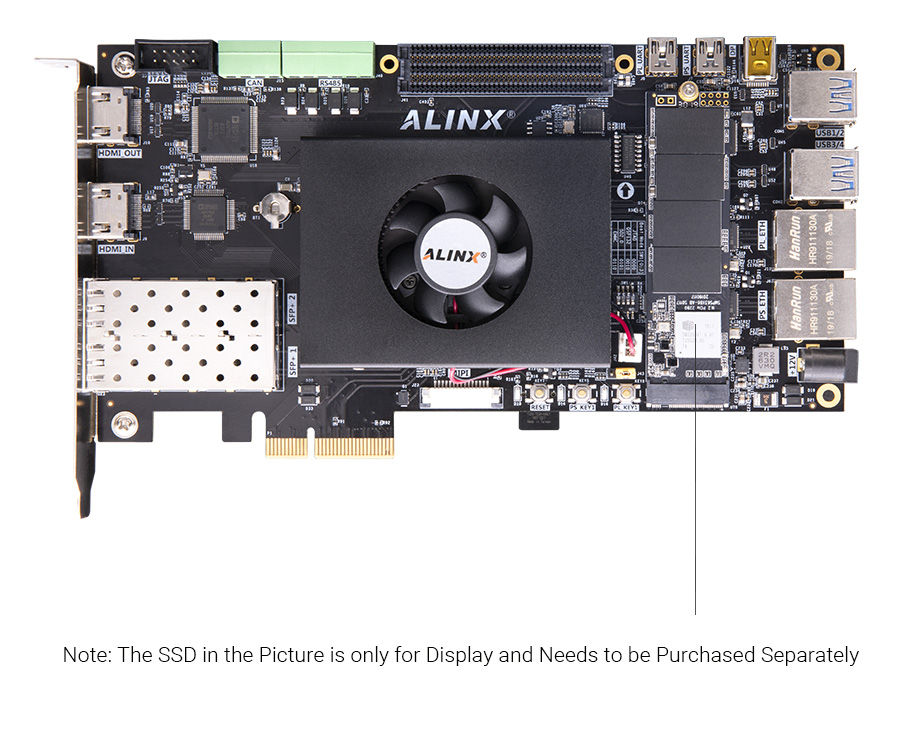

M.2 Interface
Used to Connect the M.2 SSD Solid State Drive (Need to Buy it Yourself)
MIPI Interface
Used to Connect ALINX MIPI Interface OV5640 Camera Module AN5641
SFP Interface x 2
Data Communication Receiving and Transmitting Speed up to 12.5Gb/s
HDMI Input
Support 1080P@60Hz Input, Data input in Different Formats
HDMI Output
Support 1080P@60Hz, 3D Output

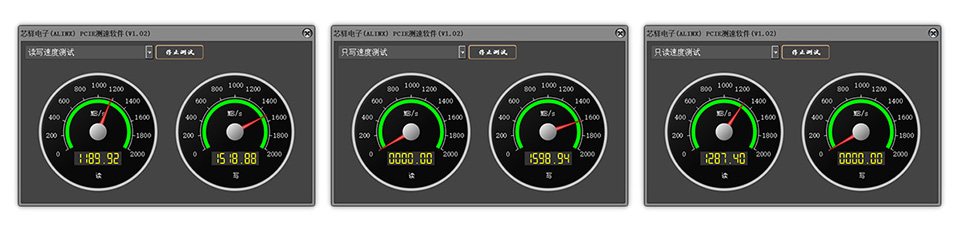

PCIe x2 Interface
Support PCI Express 3.0 Standard(Compatible 2.0), Speed up to 8GBaud
USB 3.0 x 4
Used to Connect External USB Peripherals
USB Uart x 2
Used for Serial Communication with PC or External Devices
Gigabit Ethernet
Two 10/100/1000M Ethernet with RJ-45 Interfaces for Data Exchange
Ｃrystal Oscillator
33.333MHz Provide for the PS system 200MHz Provide DDR Reference Clock for the PL Logic
RS485 Bus Interface x2
Used for 485 communication Service
CAN Bus Interface x2
Used for CAN Communication Service
JTAG
10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download
EEPROM
EEPROM 24LC04 with IIC Interface On-Board
FMC Expansion Ports
Standard FMC HPC Expansion PortCan be Connect with Various XILINX or ALINX FMC Modules (HDMI Input/Output Module, Binocular Camera Module, Hight Speed AD Module).
Temperature Sensor
Sensor Chip LM75, Used to Detect the Ambient Temperature
Real Time Clock
RTC with a Battery Holder, The Battery Model is CR1220
SD Card Slot
1 Micro SD Card Slot, Support SD Mode and SPI Mode
LED
5 LEDs, 3 LED in the Core Board, 3 LEDs in the Carrier Board
KEYs
3 KEYs, 1 Reset KEY, 2 User KEYs
Power Supply Parameters
Voltage Input
+12 V DC
Current Input
Max. Current 3A
Package List
FPGA Board
1
Heat Sink (Fixed on the Board)
1
Mini USB Cable
1
USB Downloader Cable
1 Set
12V Power Adapter
1
PCIe Fence
1
TF Card
1
Card Reader
1
Structure Size
Size Dimension
Core Board 3.15 inch x 2.36 inch, Carrier Board 7.87 inch x 4.37 inch
Number of Layers
16-Layer Core Board PCB, 8-Layer Carrier Board PCB Reserve independent power layer and GND layer
XILINX VITIS-AI DPU
AI recognition detection, depth computing learning
Intelligent identification and detection, image and video processing, security monitoring, machine vision, fire monitoring,
traffic safety, smart construction site, smart hotel, smart agriculture, Internet of Things
Vehicle Identification
Infrared Vehicle Identification
Pedestrian recognition
Indoor Person Recognition
Fire detection
Helmet detection
Concrete defect detection
PCB defect detection
Super Combination with Mali™-400 MP2 GPU, 64bit DDR4 RAM
Industiral Grade Chip Dual ARM Application Processor
Quad Core ARM Cortex-A53，1.333GHz；Dual Core Cortex™-R5， 533MHz；PS 4GB DDR4，64bit；PL 1GB DDR4，64bit
Rich extension interface
High-Speed Transmission
Deep Learning, AI Computing, Video Processing High-Speed Data Transmission Processing
Core Board + Carrier Board Customers Can Directly Use the Core Board in their Design

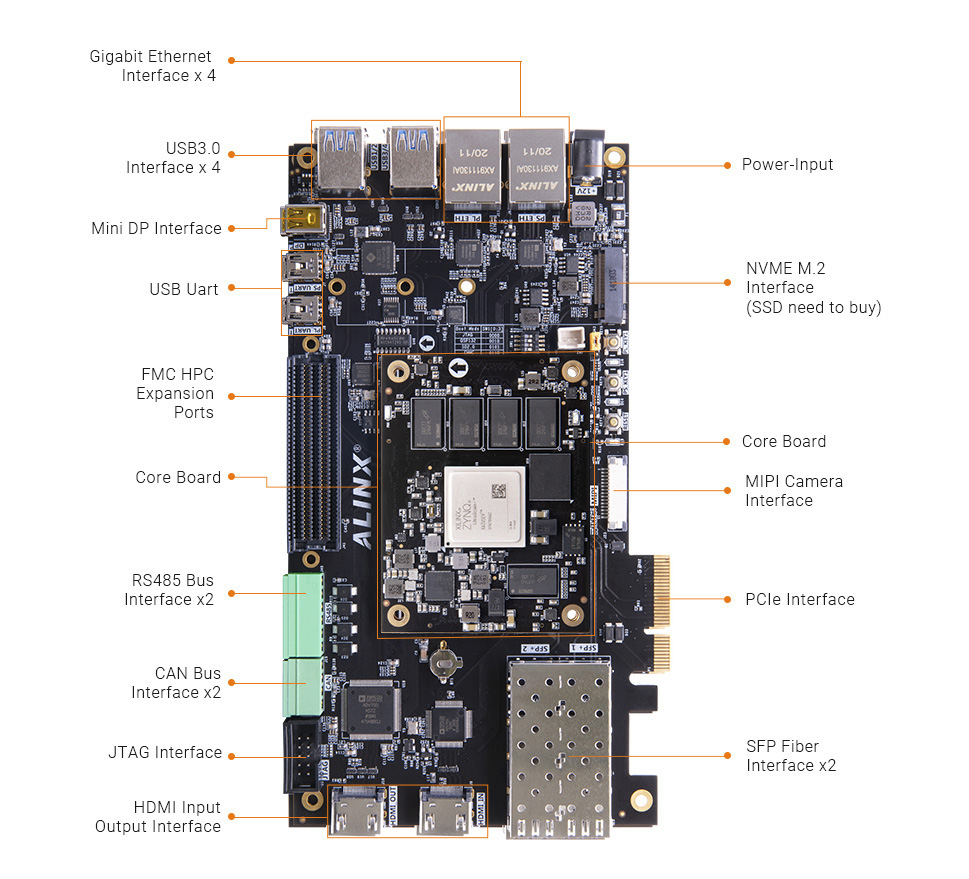

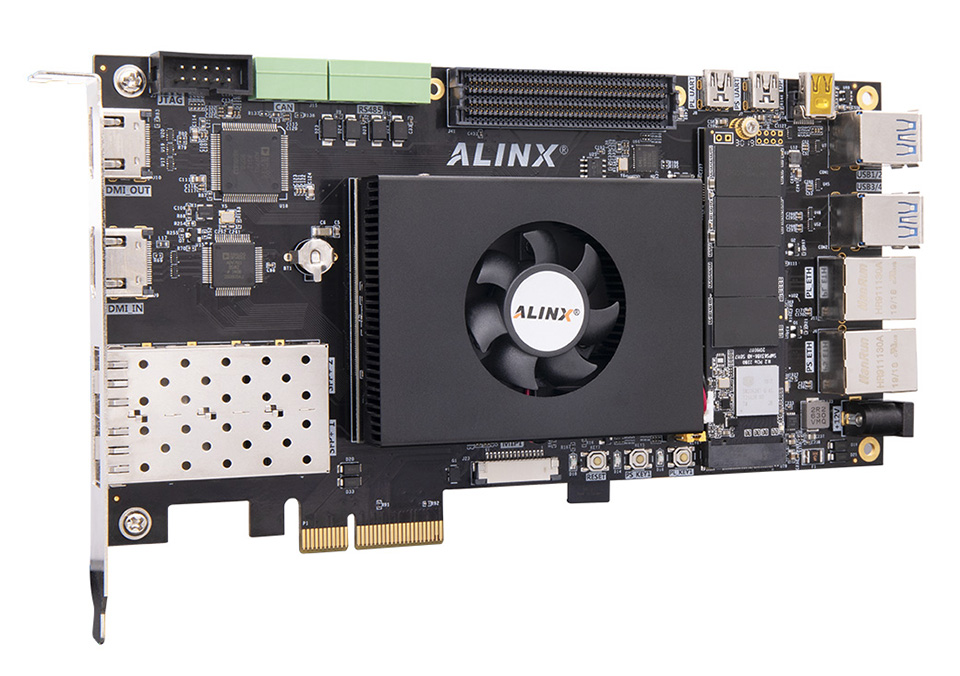

Rich Interfaces in the Carrier board. Standard FMC HPC Interface, SFP Interface x 2, NVME M.2 Interface, DP Interface, MIPI Camera Interface, USB 3.0 x 4, USB Uart x 2, Gigabit Ethernet x 2, HDMI Input/Output Interface SD Card Slot, CAN Bus Interface x2, RS485 Bus Interface x2 Apply to AI Intelligence, Cloud Computing, Deep Learning, Network Communication, High-Speed Data Transmission, Video Image Processing and Industrial Control
High-Speed Data Transmission
Support PCIe 3.0 x2 Standard
Single Channel Communication Rate up to 8GBaud
SFP Optical fiber interface
SFP Transmission Communication
Receiving and Transmitting Speed up to 12.5Gb/s
HD Video Concept Design
H.264 / H.265 Video Codec
Multimedia, Automotive ADAS, Surveillance and other Embedded Vision Applications
Encode and Decode up to 4Kx2K (60fps) Video at the same time
Intelligent Identification, Medical Security Vehicle Digital, Industrial Control, Smart Grid
Video iMAGE Collection Demo Camera Acquisition System
MIPI Camera Module AN5641 On-Board Demo
The MIP Camera Module AN5641 for Video Capture and Displays it on the Monitor through the Mini DP Interface
