AX7102

공유
짧은설명

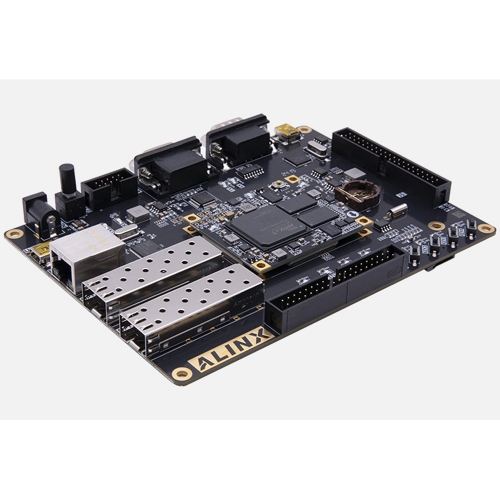

XILINX Artix-7 SFP FPGA Development Board XC7A100T
판매가
543,400 <관세ㆍ부가세 포함>
구매제한
옵션당 최소 1개
구매혜택
할인 : 적립 마일리지 :
배송비
55,000원
택배
방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호
상품코드
1000618362
제조사
ALINX
AX7102
0
총 상품금액
총 할인금액
총 합계금액

상품상세정보

Xilinx Artix-7 FPGA Board

2 SFP Interfaces, 1 Gigabit Ethernet

Apply to Multi-Channel Video Transmission Network and SFP communication High-Speed Data Transmission and Exchange




Techinal Support

Supporting Verilog HDL Demos and Docuemnts,All Doucments Saved in Dropbox, after buy the board, email to get it.

00.vivado2017.4 Installation
01.LED water lamp experiment and simulation in vivado
02. Key detection experiment in Vivado
03.PLL Experiment in Vivado
04.Serial port Transmitting and Receiving experiment
05.Key debounce experiment
06.I2C Interface EEPROM Experiment
07.FPGA on-chip ROM  read and write experiment
08.FPGA on-chip RAM read and write experiment
09.FPGA on-chip FIFO read and write experiment
10.SD Card Read and Write Experiment
11.VGA Test Experiment
12.DDR3 Read Write and Simulation experiment
13.Recording and playback Experiment of  AN831 Module
14.SD Card Music Player Experiment
15.Character Display Experiment
16. SD Card Read BMP Picture Display experiment

17.OV5640 Camera Display Experiment
18.SOBEL Edge Detection Experiment
19.AD9238 Waveform Dispaly Experiment
20.AD7606 Waveform Display Experiment
21.ADDA Testing Experiment
22.AD9767 Waveform Display Experiment-Dual channel Sine Wave Experiment
23.AD9767 Waveform Display Experiment-Dual channel Triangle Wave Experiment
24.ds1302 Digital Tube Display RTC Time Experiment
25.USB 2.0 Communication Experiment
26.Gigabit Ethernet transmission experiment
27.AD9238 Chip Ethernet Transmission
28.AD7606 Chip Ethernet Transmission Experiment
29.AD9280 Chip Ethernet Communication
30.Gigabit Ethernet Video Transmission Experiment
31.GTP Fiber Optic Communication Testing Experiment
32.GTP Fiber Optic Data Communication Experiment



Product Package




FPGA Board

AN9767 Collection Package

AN706 Collection Package

AN9238 Collection Package

Video Package

Luxury Package

FPGA Board

USB Downloader

AN9767









AN706









AN9238









Binocular Camera









4.3-inch LCD











Supporting Modules in the Package, Click to Learn More



key Features




·Core Board SOM

AC7100B EN接口1.jpg



*Core Board AC7100B, Click to Purchase>





·FPGA Board




Product Parameters



Core Board Parameters

FPGA Chip

XC7A100T-2FGG484I

Logic Cells

101440

Look Up Tables (LUTs)

15850

CLB Flip-Flops

126800

Block RAM

4860Kb

DSP

240

QSPI FLASH

128Mb

DDR3

2 Pics, Totally 1GB

Total IOs

180

Adjustable Voltage IO

100

PCIe 2.0

X4

XADC

1 个 12bit 1Mbps AD

Chip Level

Industrial Grade

Working Temperature

-40°c to 85°c

Speed Grades

-2

Active Differential Crystal

2

Number of Differential Pairs

48

Interface and Function

DDR3

Two 512MB DDR3, 32bit Bus, Data Rate 800Mbps

QSPI Flash

128 Mbit, Used as FPGA User Data Storage

Crystal Oscillator

200MHz Provide Stable Clock Source for the System
125MHz Provide Stable Clock Source Input for the GTX transceiver

Transceiver

4 GTP, each up to 6.6Gb/s, Used for SFP and PCIe Data Communication

SFP Interface

2-way High-Speed SFP Interface, the Receiving and Transmitting speed of Each Channel is up to 6.6 Gb/s

Gigabit Ethernet

10/100/1000M Ethernet with RJ-45 Interface for Ethernet Data Exchange

JTAG

10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

VGA

1 channel VGA output interface, 16 bit color VGA analog output, rgb565 format

RS232

Used for Data Communication with Computer or Other Devices

USB 2.0

Used for USB 2.0 High Speed Communication with PC

USB Uart

Used for Serial Communication with PC or External Devices

Real Time Clock

RTC with a Battery Holder, The Battery Model is CR1220(Buy it yourself)

40-Pin Expansion Ports

Two 40-Pin Expansion Ports (0.1 inch Pitch), Can be Connect with Various ALINX Modules (Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules).

EEPROM

EEPROM 24LC04 with IIC Interface On-Board

SD Card Slot

1 Micro SD Card Slot, Support SD Mode and SPI Mode

LED

5 User LEDs(1 LED in Core Board, 4 LEDs in the Carrier Board)

KEYs

4 User KEYs, 1 Reset Key (in the Core Board)

Power Supply Parameters

Voltage Input

+12 V DC

Current Input

Max. Current 2A

Package List

FPGA Board

1

Heat Sink (Fixed on the Board)

1

Mini USB Cable

1

USB Downloader Cable

1 Set

12V Power Adapter

1

Transparent Protection Board

1

Structure Size

Size Dimension

Core Board 2.17 inch x 1.77 inch, Carrier Board 5.91 inch x 4.34 inch

Number of Layers

6-Layer PCB, 4-Layer Carrier Board PCB




Data Transmission Processing

2 High-Speed SFP Interfaces

Industrial Ethernet, Multi-Channel Video Transmission Multi-Channel Network and SFP Communication High-Speed Data Transmission Exchange


High-Speed SFP Video Transmission

SFP Video Transmission Demo

Expansion Interface Connects Binocular Camera Module Realize SPF Video Transmission


The FPGA Development Board Collects Video Images through the Camera Module, and Transmits it to another FPGA Development Board through the SFP Interface.
After the SFP Interface Receives the Data, Displayed it to the Monitor through the VGA Interface.


SFP Transceiver Communication Eye Diagram

Data Collection Display

Signal Data Acquisition System

AN9767/AN706 Module On-Board Demo


* The Signal Source Output Signal is Connected to the AN9767 Module, and the Waveform Signal is Displayed through the Oscilloscope
* The Signal Source Output Signal is Connected to the AN706 Module,
  Run the System to Draw the Waveform Data, and is Displayed to the Monitor through the HDMI Interface of the FPGA Development Board
