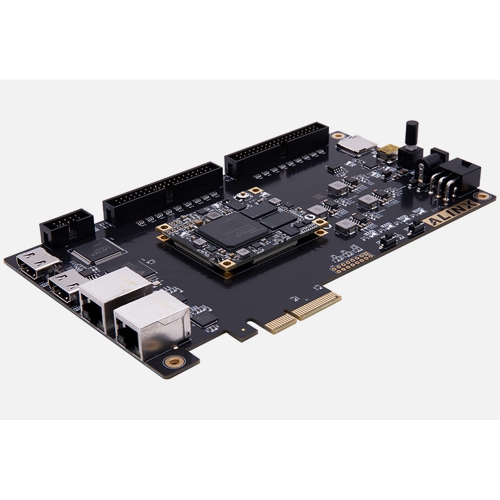

Xilinx Artix-7 FPGA Development Board PCIE XC7A100T
판매가
541,200 <관세ㆍ부가세 포함>
구매제한
옵션당 최소 1개
구매혜택
할인 : 적립 마일리지 :
배송비
0원 / 주문시결제(선결제) 조건별배송
택배
방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호
상품코드
1000618361
제조사
ALINX
AX7103B
0
총 상품금액
총 할인금액
총 합계금액

상품상세정보

Notice for purchase:

This series of development boards include AX7103 and AX7103B

Only the Ethernet interface chips of the expansion board are different, and the functions are the same.

The two models will be delivered randomly according to the inventory, please distinguish them according to the QR code label.

Notice for purchase:

This series of development boards include AXU15EG and AXU15EGB

Only the Ethernet interface chips of the expansion board are different, and the functions are the same.

The two models will be delivered randomly according to the inventory, please distinguish them according to the QR code label.




Xilinx Artix-7 FPGA Board

PCIe x4, Gigabit Ethernet x 2, HDMI Output, HDMI Input x 4, Uart

Verify PCIE Solutions and Accelerate PCIE Product Development Network Communication, Data Transmission Processing Video Image Processing, Industrial Control


Techinal Support

Supporting Verilog HDL Demos and Docuemnts,All Doucments Saved in Dropbox, after buy the board, email to get it.

00.vivado2019.4 Installation
01.LED water lamp experiment and simulation in vivado
02. Key detection experiment in Vivado
03.PLL Experiment in Vivado
04.Serial port Transmitting and Receiving experiment
05.Key debounce experiment
06.I2C Interface EEPROM Experiment
07.FPGA on-chip ROM  read and write experiment
08.FPGA on-chip RAM read and write experiment
09.FPGA on-chip FIFO read and write experiment
10.SD Card Read and Write Experiment
11.HDMI Programming Output Experiment
12.DDR3 Read Write and Simulation experiment
13.Recording and playback Experiment of AN831 Module
14.SD Card Music Player Experiment
15.Character Display Experiment
16. SD Card Read BMP Picture Display experiment
17.OV5640 Camera Display Experiment

18.SOBEL Edge Detection Experiment
19.AD9238 Waveform Dispaly Experiment
20.AD7606 Waveform Display Experiment
21.ADDA Testing Experiment
22.AD9767 Waveform Display Experiment-Dual channel Sine Wave Experiment
23.AD9767 Waveform Display Experiment-Dual channel Triangle Wave Experiment
24.GTX Fiber Optic Communication IBERT testing Experiment
25.AD9238 Chip Ethernet Transmission
26.AD7606 Chip Ethernet Transmission experiment
27.AD9280 Chip Ethernet Communication
28.Gigabit Ethernet Video Transmission experiment
29.PCIe Speed Test Experiment
30.PCIe HDMI Input Experiment
31.PCIe HDMI Output Experiment
32.PCIe xdma Interface Experiment

Product Package




FPGA Board

AN9767 Collection Package

AN706 Collection Package

AN9238 Collection Package

Video Package

Luxury Package

FPGA Board

USB Downloader

AN9767









AN706









AN9238









Binocular Camera









4.3-inch LCD











Supporting Modules in the Package, Click to Learn More



key Features

·Core Board SOM

AC7100B EN接口1.jpg



*Core Board AC7100B, Click to Purchas>>


·FPGA Board




Product Parameters

Core Board Parameters

FPGA Chip

XC7A100T-2FGG484I

Logic Cells

101440

Look Up Tables (LUTs)

15850

CLB Flip-Flops

126800

Block RAM

4860Kb

DSP

240

QSPI FLASH

128Mb

DDR3

2 Pics, Totally 1GB

Total IOs

180

Adjustable Voltage IO

100

PCIe 2.0

x 4

XADC

12bit, 1Mbps AD

Chip Level

Industrial Grade

Working Temperature

-40°c to 85°c

Speed Grades

-2

Active Differential Crystal

2

Number of Differential Pairs

48

Interface and Function

DDR3

Two 512MB DDR3, 32bit Bus, Data Rate 800Mbps

QSPI Flash

128 Mbit, Used as FPGA User Data Storage

Crystal Oscillator

200MHz Provide Stable Clock Source for the System
125MHz Provide Stable Clock Source Input for the GTX transceiver

Transceiver

4 GTP, each up to 6.6Gb/s, Used for SFP and PCIe Data Communication

PCIe x4 Interface

Provides a Standard PCIe 2.0 x 4 High-Speed Data Transmission Interface Single-Channel Communication Rate up to 5GBaud

Gigabit Ethernet

Two 10/100M/1000M Ethernet with RJ-45 Interfaces for Data Exchange

JTAG

10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

HDMI Output

Support 1080P@60Hz, 3D Output

HDMI Input

Support 1080P@60Hz Input, Data input in Different Formats

USB Uart

Used for Serial Communication with PC or External Devices

EEPROM

EEPROM 24LC04 with IIC Interface On-Board

SD Card Slot

1 Micro SD Card Slot, Support ted SD Mode and SPI Mode

LED

5 User LEDs(1 LED in Core Board, 4 LEDs in the Carrier Board)

KEYs

4 User Keys

40-Pin Expansion Ports

Two 40-Pin Expansion Ports (0.1 inch Pitch), Can be Connect with Various ALINX Modules (Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules).

Power Supply Parameters

Voltage Input

+12 V DC

Current Input

Max. Current 2A

Package List

FPGA Board

1

Heat Sink (Fixed on the Board)

1

Mini USB Cable

1

USB Downloader Cable

1 Set

12V Power Adapter

1

Transparent Protection Board

1

Structure Size

Size Dimension

Core Board 2.17 inch x 1.77 inch, Carrier Board 7.40 inch x 4.36 inch

Number of Layers

8-Layer Core Board PCB, 4-Layer Carrier Board PCB Reserve independent power layer and GND layer




Rich expansion interface

High-Speed Transmisson

Network, PCIe Data Transmission Accelerator Video Image Processing, Industrial Control


· Core Board + Carrier Board
Customers Can Directly Use the Core Board in their Design

· Rich Interfaces in the Carrier board
PCIe x 4, Gigabit Ethernet x 2, USB Uart SD Card Slot, HDMI Input/Output

· Meet the Various PCIe High-Speed Data Transmission
Video Image Processing and Industrial Control Requirements

HDMI Input and Output

Verify PCIE Dedicated Board

Verify PCIE Solutions and Accelerate PCIE Development


The video signal(1080p) is collected through the HDMI input uploaded to the computer through the PCIE interface,
and the upper computer displays the collected video image in real time


The Host Computer Grabs the Computer Desktop (1080P), and Transmits it to the FPGA through the PCIE Interface.
The FPGA Outputs through the HDMI Interface, and the Monitor Displays in Real Time

PCIe Read and write test

PCIe High-Speed Data Transmission

Meet Various PCIe High-Speed Data Transmission, Video Image Processing and Industrial Control Requirements


Binocular Camera Module Collection

Camera Acquisition System

Intelligent Identification, Medical Security Vehicle Digital, Industrial Control, Smart Grid


Dual Lens Camera Module AN5642 On-Board Demo

The Binocular Camera Module AN5642 for Video Capture, and Displays it on the Monitor through the HDMI Interface of the FPGA Development Board, to Realize Display Simultaneously.

Data Collection Display

Signal Data Acquisition System

AN9767/AN706 Module On-Board Demo


*The Signal Source Output Signal is Connected to the AN9767 Module, and the Waveform Signal is Displayed through the Oscilloscope
*The Signal Source Output Signal is Connected to the AN706 Module,
Run the System to Draw the Waveform Data, and is Displayed to the Monitor through the HDMI Interface of the FPGA Development Board

Direct operation on the palm

4.3 Inch LCD Screen


4.3-Inch LCD AN430 Module On-Board Demo
