The TR5-Lite Stratix V FPGA Development Kit a slim form-factor PCIe board that features maximum power in a minimum size. Perfect for 1U chassis servers and other stringent environments, the TR5-Lite includes high speed SFP+ interfaces and high-bandwidth memory architecture for high performance computing, cloud systems, and ultra low-latency trading.

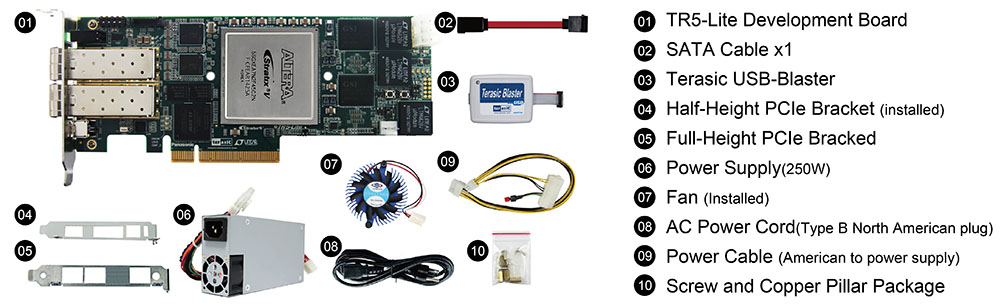

The TR5-Lite Board

Altera Stratix? V GX FPGA (5SGXEA7N2F45C2)

• JTAG header for FPGA programming
• Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory

General user input / output:

• 4 LEDs
• 1 LED Array
• 2 push-buttons
• 2-position DIP switch

On-Board Clock

• 50MHz Oscillator
• Programmable oscillators Si570 and CDCM61004

Memory

• 36MB 550MHZ QDRII+ SRAM
• 2GB 667MHz DDR3 SDRAM
• 256MB FLASH

Communication Ports

• Two SFP+ connectors
• One Serial ATA (SATA II) host port
• PCI Express (PCIe) x8 edge connector
• One RS422 transceiver with 1394 connector

System Monitor and Control

• Temperature sensor
• Fan control

Power

• PCI Express 6-pin power connector, 12V DC Input
• PCI Express edge connector power

Mechanical Specification

• PCI Express low-profile and half-length
