▶ Product Description

Designed for modular and scalable high-performance FPGA Prototyping and HPC solutions, Apollo S10 SoM packs unbeatable performance and energy efficiency in a tiny form factor and provides up to 90X performance increase over CPUs for critical workloads such as simulation acceleration, molecular dynamics, machine learning.

Apollo S10 SoM takes advantage of the latest Intel^® Stratix^® 10 SoC with 2800K logic elements to obtain speed and power breakthrough (with up to 70% lower power). Combining a number of high-end hardware interfaces such as high-capacity and high-bandwidth DDR4 SDRAM (up to 64GB), on-board USB-Blaster II, and FMC/FMC+ connectors for I/O expansion, the board delivers more than 2X the performance of previous generation development kits.

Apollo S10 SoM is also extensible. Apollo Carrier board is designed to assist our clients development of Apollo S10 SoM. The carrier board features two ultra low-latency, straight connections 40Gbps QSFP+ module and Thunderbolt™ 3 for our clients’ to evaluate the I/O planned for their systems, and build their custom systems around it.

▶ Specifications

FPGA

• Intel Stratix 10 Soc FPGA 1SX280HU2F50E1VG

FPGA Configuration

• On-Board USB Blaster II for FPGA programming and Debug
• AS Mode configuration from QSPI Flash

Clock and User Interface

• Four 50Mhz Single-ended Clock Source
• One 100Mhz Single-ended Clock Source
• Clock Generator Si5341
• LED x2, Button x2, Dip Switch x2, CPU Reset
• Power Switch
• FMC Voltage 1.8V/1.5V/1.2V Selection
• FMC+ Voltage 1.8V/1.5V/1.2V Selection

Memory

• 1024Mbit QSPI Flash (EPCQL1024 Compliant)
• Total of 64GB DDR4 x72 2133MT/s with ECC
  • Two independent DDR4 banks
  • One bank is shared with FPGA and HPS

Communication and Expansion

• FMC (Vita57.1) connector with 10 transceivers
• FMC+(Vita57.4) connector with 24 transceivers

HPS

• MicroSD Socket
• Gigabit Ethernet with RJ45
• USB OTG with Micro USB Connector
• UART to USB with Mini USB Connector
• RTC
• LED x1, Button x1, Cold Reset Button
• 1x6 GPIO Header

Dashboard System

• Input Power Monitor
• FPGA and Board Temperature Monitor
• Fan Control and Monitor
• Auto Fan Speed
• Auto Shutdown

Power Source

• 12V from 2x4 PCIe connector
• 12V from Samtec connector (reserved for carrier board)

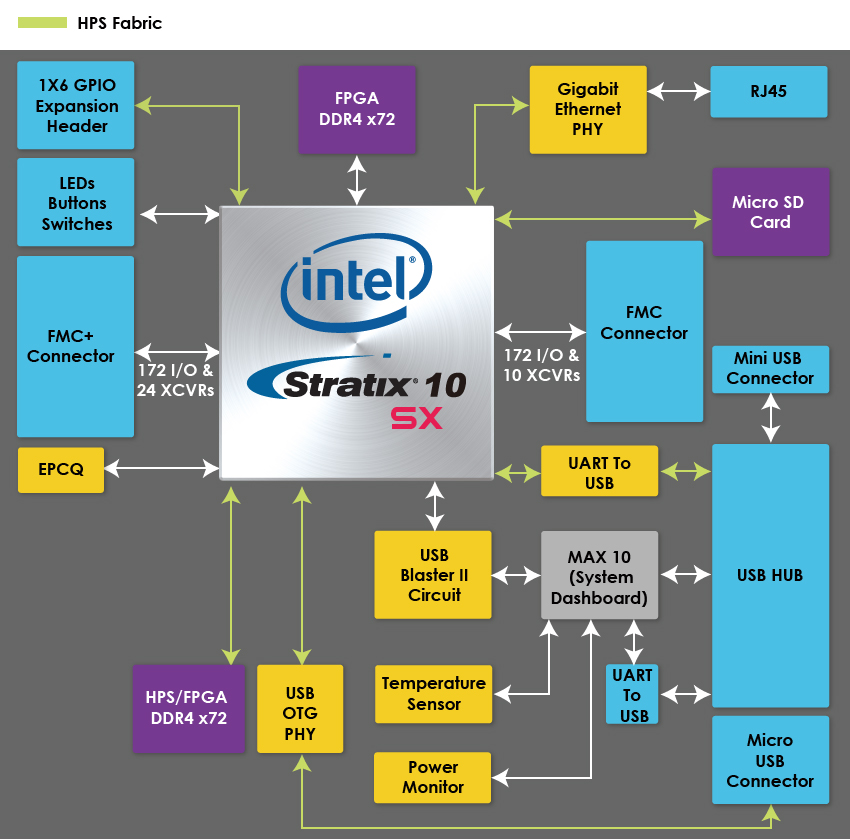

Block Diagram

Apollo Developer Kit

• The Kit is composed by
  • Apollo S10 Module (heatsink installed)
  • Apollo Carrier Board

• The Apollo Carrier Board features includes:
  • PCIe Gen3 x4 via Thunderbolt 3 (Type-C Connector)
  • USB Downstream port via Thunderbolt 3 (Type-A Connector)
  • Two QSFP connectors (40G Ethernet)
  • Clock Generator to provide reference clock for transceiver IP
  • LED x4, Button x2, Switch x2
  • 2x20 GPIO Expansion Header. Adjustable IO Standard 3.3V/2.5V/1.8V.
• The Block Diagram of Apollo Carrier Board

Connection to FMC Daughter Card:

• Connect to 12G SDI-FMC Daughter Card:

• Connect to D8M-FMC Daughter Card:

• Connect to ADC-FMC Daughter Card:

• Connect to HDMI-FMC Daughter Card:

• Connect to XTS-FMC Daughter Card:

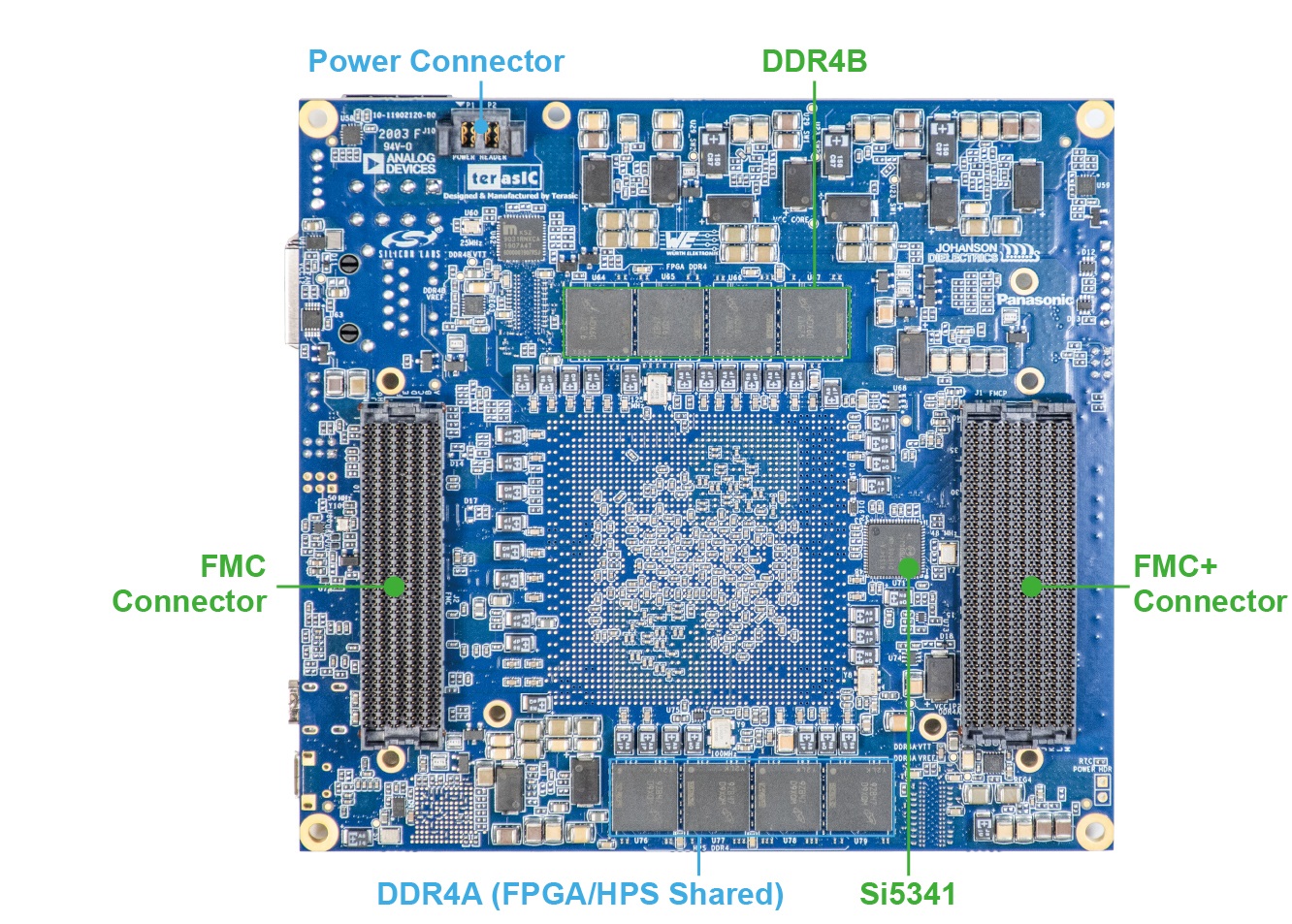

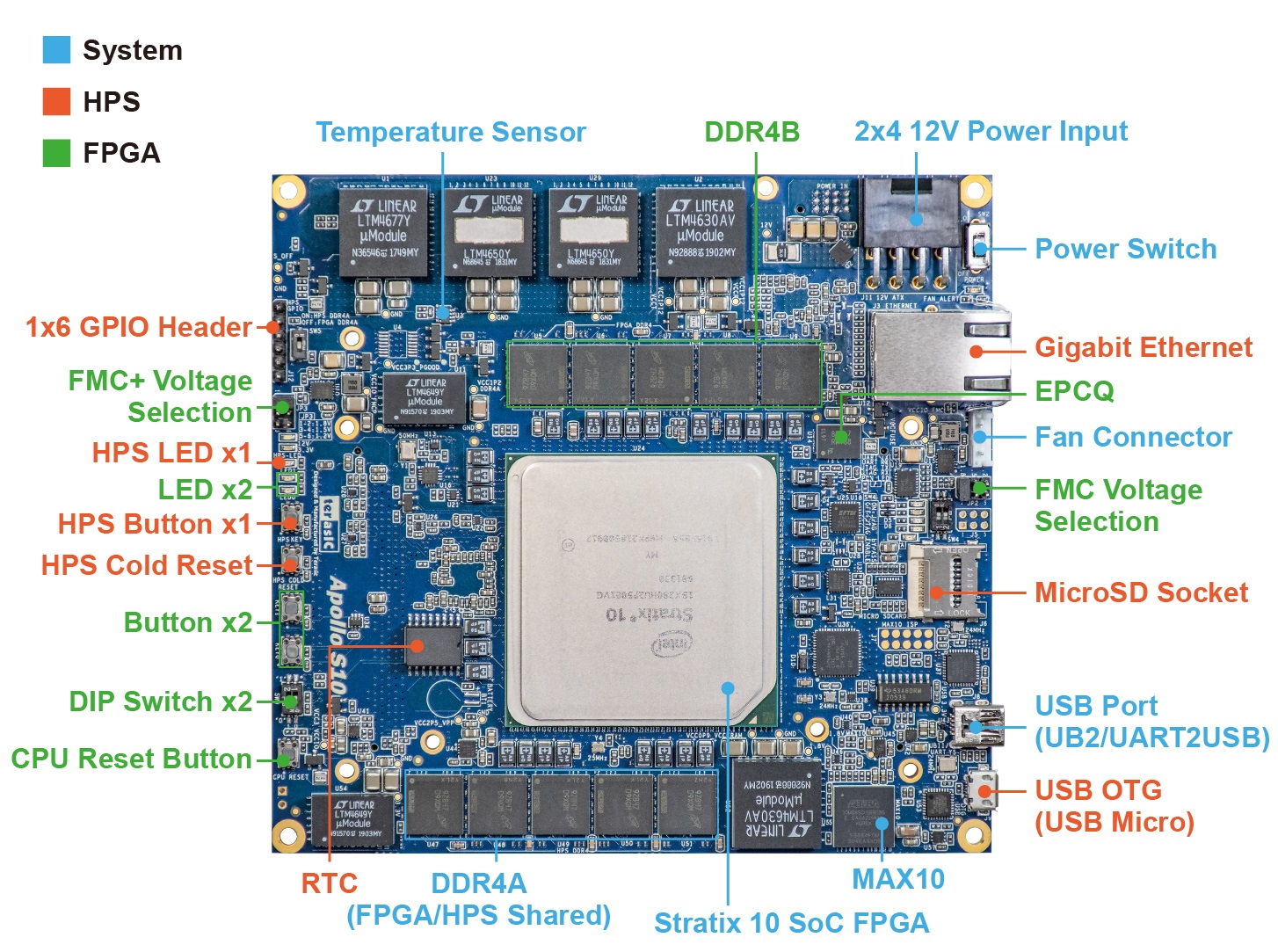

▶ Layout

Apollo S10 Module:

Size：125x133mm

Apollo Carrier Board:

Size：150.83x184.79 mm

▶ Resources

Documents

Title	Version	Size(KB)	Date Added	Download
Apollo Carrier Board User Manual revB	1.3	4234	2020-07-08
Apollo S10 SoM User Manual	1.4	7912	2020-06-10
Apollo S10 SoM Demonstration Manual	1.2	3722	2020-06-10
Apollo S10 SoM Brief	V1	2800	2020-04-20

CD-ROM

Linux BSP (Board Support Package): MicroSD Card Image

Title	Version	Size(KB)	Date Added	Download
Linux Console (Kernel 5.4.13-lts )	1.0		2020-03-31

Daughter Card Demonstrations

▶ Kit Contents

Apollo S10 Module:

1. Apollo S10 Module
2. Heatsink (Installed)
3. MicroSD Card (Installed)+ Card Reader
4. Mini USB Cable
5. Screw Set
6. AC Power Cord
7. 12V/240W Power Supply
8. Quick Start Guide
