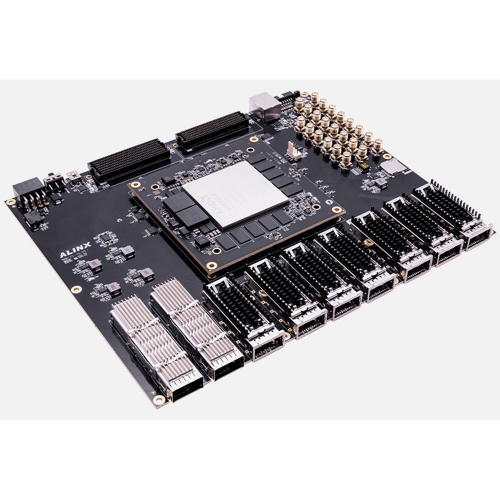

AXVU13G

HOME >

AXVU13G

짧은설명: AXVU13G FPGA Dev Board & Kit with AMD Virtex US+ XCVU13P

판매가: 27,060,000원 <관세ㆍ부가세 포함>

구매제한: 옵션당 최소 1개

구매혜택: 할인 : 적립 마일리지 :

배송비

0원 / 주문시결제(선결제) 조건별배송

금액별배송비

0원 이상 ~ 100,000원 미만 55,000원
100,000원 이상 ~ 200,000원 미만 44,000원
200,000원 이상 ~ 300,000원 미만 33,000원
300,000원 이상 ~ 400,000원 미만 22,000원
400,000원 이상 ~ 500,000원 미만 11,000원
500,000원 이상 0원

배송비 계산 기준 : 판매가

택배

방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호

상품코드: 1000620147

제조사: ALINX

AXVU13G

0원

총 상품금액

총 할인금액

총 합계금액

상품상세정보
배송안내
교환 및 반품안내
상품후기 (0)
상품문의 (0)

상품상세정보

▶ Product Description

The AXVU13G is a professional-grade FPGA development platform centered on the Xilinx Virtex UltraScale+ XCVU13P FPGA, featuring extensive high-speed communication interfaces (including QSFP-DD and QSFP28), expansion capabilities (via FMC+ and FMC), and debug interfaces, designed for high-bandwidth data processing and complex algorithm acceleration

▶ Applications

● Compute Acceleration
● Machine Learning and AI
● Network Acceleration
● Wired Communications
● 5G Baseband
● Radar
● Test and Measurement
● Emulation and Prototyping

▶ Key Features

System-on-Module（ACVU13）
● AMD/Xilinx Virtex Ultrascale+™:
◆ 16nm FinFET FPGA fabric
◆ System Logic Cells 3,780K，DSP Slices 12,288
◆ Peak INT8 DSP 38.3TOP/s
◆ 76 x GTY, up to 28.21 Gbps, Transceiver
◆ Integrated 100G Ethernet MAC and 150G Interlaken cores
● Pluggable module with 8 x Samtec board-to-board connectors
● 20 GByte DDR4 SDRAM
● 2 x 128 MB QSPI Flash
Base Board
● 2 x QSFP-DD (200Gbps)
● 7 x QSFP28 (100Gbps)
● 1 x FMC+
● 1 x FMC HPC
● 26 x SMA（8x RX+8x TX+6x CLK+2x MGT-CLK+2x TRIG）
● 1 x Gigabit Ethernet
● 1 x UART(USB to UART)
● 1 x Micro SD Card Slot
● 1 x JTAG
● 4 x LED
● 1 x KEY
● 1 x DIP Switch
● 12V single supply
● Dimensions: 210x255 mm form factor

▶ Specifications

Board Features

Featuring the AMD/Xilinx Virtex Ultrascale+™ XCVU13P-2FHGB2104I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale+™ based application.

* The AXVU13G development board consists of a ACVU13 SoM and base board. If you want to purchase ACVU13 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

▶ What's Inside

What's Inside the Box

ALINX AMD Xilinx Virtex Ultrascale+™ XCVU13P FPGA development board and Some accessories

The Heatsink Kit is an optimal cooling solution for FPGA devices – it is low-profile and covers the whole XCVU13P device surface.

System-on-Module	1	Base Board	1
Mini USB Cable	1	USB Downloader Cable / set	1
12V Power Adapter	1	Heatsink Kit (preinstalled)	1
SMA Cable	13	SD Card	1

▶ Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR4 SDRAM	QSPI Flash	GTY 28.21Gbps	USD Price
AXVU13G	√	XCVU13P-2FHGB2104I	20GB	2 x 128MB	76	14976

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
