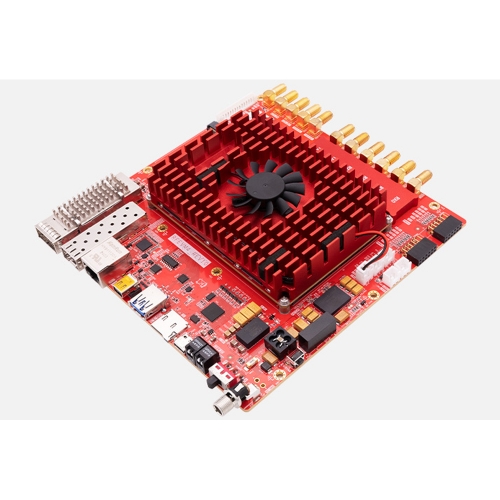

짧은설명: AXRF67 Dev Board & Kit with AMD Zynq™ US+ RFSoC XCZU67DR

판매가: 18,920,000원 <관세ㆍ부가세 포함>

구매제한: 옵션당 최소 1개

구매혜택: 할인 : 적립 마일리지 :

배송비

0원 / 주문시결제(선결제) 조건별배송

금액별배송비

0원 이상 ~ 100,000원 미만 55,000원
100,000원 이상 ~ 200,000원 미만 44,000원
200,000원 이상 ~ 300,000원 미만 33,000원
300,000원 이상 ~ 400,000원 미만 22,000원
400,000원 이상 ~ 500,000원 미만 11,000원
500,000원 이상 0원

배송비 계산 기준 : 판매가

택배

방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호

상품코드: 1000620138

제조사: ALINX

AXRF67

0원

총 상품금액

총 할인금액

총 합계금액

상품상세정보
배송안내
교환 및 반품안내
상품후기 (0)
상품문의 (0)

상품상세정보

▶ Product Description

The AXRF67 development board is built around the AMD Xilinx Zynq UltraScale+ RFSoC ZU67DR. It provides 4 physical RF-ADC interfaces (2.95GSPS) and 2 physical RF-DAC interfaces (10GSPS), leveraging the chip's full 8-channel capability while offering optimized connectivity for target applications. It supports direct RF sampling below 7.125GHz, delivering a comprehensive solution for 5G communication, radar systems, and wired access testing from teaching labs to research verification.

▶ Applications

● 5G FR1/FR2 Baseband & RF Systems
● Wideband Spectrum Monitoring & Analysis
● Phased-Array Radar / Digital Array Radar (DAR)
● Satellite Communications
● Multi-channel RF Signal Processing (for SDR, test equipment)
● Test & Measurement (T&M) Systems

▶ Key Features

System-on-Module
● AMD/Xilinx Zynq™ Ultrascale+™ DFE ZU67DR:
◆ 489K Logic Cells
◆ 8 x 14 bit 2.5GSPS RF-ADC
◆ 2 x 14 bit 5.9GSPS RF-DAC
◆ 8 x 14 bit 10GSPS RF-DAC
◆ ARM® quad-core Cortex™-A53 up to 1.333GHz
◆ ARM® dual-core Cortex™-R5F up to 533MHz
◆ 16nm FinFET+ FPGA fabric
◆ Hardened DFE (Digital Front-End) with integrated RF-ADC and RF-DAC◆ 4 GB (64-bit) DDR4 SDRAM on PS
◆2 GB (32-bit) DDR4 SDRAM on PL
◆ 128 MB QSPI Flash
● Expansion: 2×400-pin high-speed connectors to the base board
Base Board
● 1 x 100G QSFP28
● 1 x 10G SFP+
● 1 x M.2 SSD (PCIe Gen2 x2)
● 1 x Gigabit Ethernet
● 4× RF-ADC Input Interfaces
● 2× RF-DAC Output Interfaces
● 1 x USB3.0
● 1 x DisplayPort
● 1 x Type-C (JTAG + UART)
● 1 x Micro SD Card Slot
● 2 x PMOD Expansion Interfaces
● 1 x High-precision GPS Module
● 4× User-programmable LEDs
● Power Switch & Reset Button
● 9-40V Wide Voltage DC Input
● Dimensions: 170mm x 170mm form factor

▶ Specifications

Development Board Features

Featuring the AMD/Xilinx's Zynq™ UltraScale+™ RFSoC XCZU67DR-2FFVE1156I Adaptive SoC

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ RFSoC based application.

* The AXRF47 development board consists of a ACRF67 SoM and base board. If you want to purchase ACRF67 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

▶ What's Inside

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ RFSoC ZU67DR development board and Some accessories

Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

System-on-Module	1	Base Board	1
Heatsink Kit (preinstalled)	1	12V power supply	1
SMA-SMA（20cm）	4	SMA-SMA（50cm）	2
5G omnidirectional antenna and base	4	USB3.0-cable	1
Ethernet cable	1	TF card	1
TF card reader	1	CD supplementary materials	1

▶ Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR4 SDRAM (PS)	DDR4 SDRAM (PL)	QSPI Flash	RF-ADC	RF-DAC	GTY	GTR	USD Price
AXRF47	√	XCZU47DR-2FFVE1156I	4 GB	2 GB	128 MB	8	8	8	4	14946
AXRF42		XCZU42DR-2FFVE1156I	4 GB	2 GB	128 MB	8	8	8	4	TBD
AXRF43		XCZU43DR-2FFVE1156I	4 GB	2 GB	128 MB	8	8	8	4	TBD
AXRF67	√	XCZU67DR-2FFVE1156I	4 GB	2 GB	128 MB	8	8	8	4	10453

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
