ABOUT THE PRODUCT

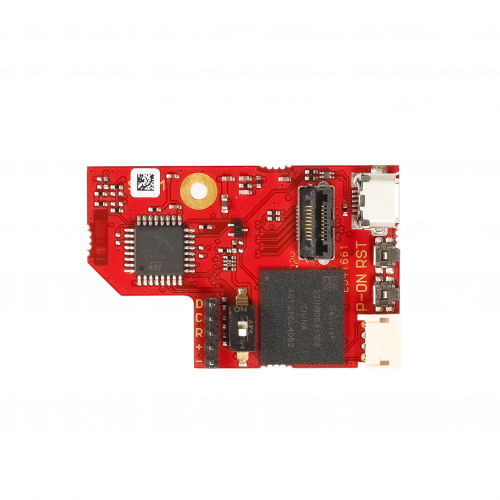

Unlock advanced boot and power management features with the QSPI eMMC module Gen2, an essential E3 add-on designed specifically for Red Pitaya’s PRO Gen 2 boards. Whether you need secure startup, safe shutdown, or multiple boot options, this intelligent module gives you full control with a single button press—perfect for embedded systems, industrial environments, or automation setups where reliability and repeatability matter.

Built around a dedicated STM microcontroller, the module handles power sequencing, watchdog functionality, and boot media selection with precision. Whether you prefer booting from a microSD card or switching to a high-speed eMMC, this module allows seamless configuration. It’s preloaded with open-source Arduino (C++) firmware, offering full transparency and customization potential.

Beyond power control, the QSPI eMMC Boot Module adds serious expansion capability. With a connector for 8 high-speed differential pairs (16 GPIOs) routed directly to the Zynq 7020 FPGA, it opens the door to high-speed digital interfacing and custom I/O configurations, without the need for additional boards.

Fully powered through the Red Pitaya base unit, the QSPI eMMC module Gen2 is compact, convenient, and ready to support your most demanding workflows.

Key Features:

• Single-button power ON/OFF control for Red Pitaya Gen 2 boards
• Supports QSPI and eMMC boot options
• Integrated STM microcontroller for:
  • Safe power-up and shutdown
  • Watchdog timer functionality
  • Boot media selection (microSD card or eMMC)
• Open-source firmware written in Arduino (C++)
• Connector for 8 high-speed differential pairs (16 GPIOs)
• Powered directly from the Red Pitaya—no extra power source needed
• Compatible with:
  • STEMlab 125-14 PRO Gen 2
  • STEMlab 125-14 Z7020 PRO Gen 2

What’s in the box:

• QSPI eMMC module Gen 2
• M2 screw

This is an additional plug-in module!
Please note that a STEMlab 125-14 PRO Gen 2 or STEMlab 125-14 Z7020 PRO Gen 2 main unit is needed for normal operation!
