▶ Product description

The STEMlab 125-14 PRO Z7020 Gen 2 is built on the trusted legacy of the original STEMlab 125-14 board, but completely re-engineered to meet the demands of modern industry and research. Designed for applications that require exceptional signal fidelity, low noise, and multi-channel synchronization, this board is ideal for aerospace, quantum, photonics, RF, and automated industrial systems.

Powered by a Zynq 7020 SoC with 1 GB of RAM, the Gen 2 PRO Z7020 offers improved analog front- and back-ends, lower jitter and latency, and a high SFDR of 50 dB. It also supports internal and external clock switching and enables multi-device synchronization through USB-C or Red Pitaya Click Shields. The E3 connector opens up high-speed differential GPIO access and advanced boot options (eMMC, QSPI).

The included software suite features intuitive, web-based measurement tools such as an oscilloscope, signal generator, spectrum analyzer, and more. With support for Python, MATLAB, LabVIEW, and C, the Gen 2 PRO Z7020 integrates effortlessly into advanced testing workflows and automation systems.

Key features

– Ultra-low noise, high-fidelity analog front-end
– Zynq 7020 SoC with dual-core ARM Cortex-A9 and 1 GB DDR
– 2 × 125MSPS 14-bit analog inputs and 2 × 14-bit outputs
– Crisp 50 Ω output impedance and improved crosstalk (70 dB up to 30 MHz)
– High SFDR: 50 dB @ 10 MHz, 10 dBm
– Internal/external clock switching with CLK_SEL pin
– E3 connector with 8 differential pairs and boot extension options
– USB-C connectivity for power, serial, USB, and synchronization
– Remote access via web interface over Ethernet
– Compatible with Python, MATLAB, LabVIEW, and more
– Free, open-source software and web apps
– Supports synchronization of multiple devices for multi-channel setups
– Reliable operation without voltage glitches on startup
–OEM variant available for custom integration

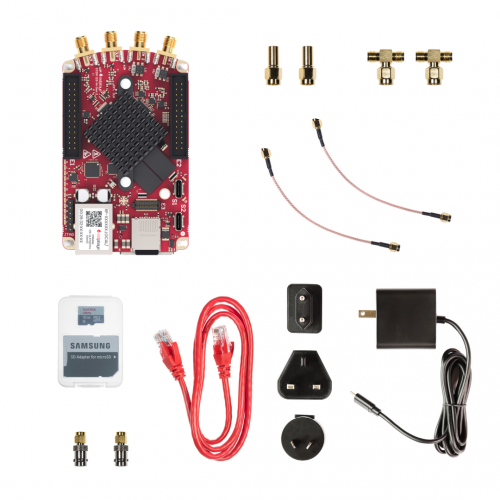

What’s in the box

– Red Pitaya STEMlab 125-14 PRO Z7020 Gen 2 digitizer board
– MicroSD card (with OS image pre-installed)
– 5V 5A USB type-C power supply
– Ethernet cable

– 2 × SMA-BNC adapters

– 2x 50 ohm termination

– 2x SMA T adapter

– 2 x SMA Cable

▶ Applications

Oscilloscope AND SIGNAL GENERATOR

Observe electrical signals in time. Generate signals of predefined or custom shapes, frequencies and amplitudes.

Learn more

Spectrum analyzer

Observe signals in frequency domain, observe amplitude of each freq. component.

Learn more

Bode analyzer

Measure freq. response of DUT (device under test) in terms of gain and phase.

Learn more

Logic analyzer

Capture logic signals analyzer and decode protocols like I2C, SPI, UART and CAN.

Learn more

LCR meter

Measure the inductance (L), capacitance (C), and resistance (R) of an electronic component.

Learn more

Marketplace

It is a place where free of charge open source applications developed by our community members are available within a single click for immediate experience and use.

Learn more

VNA (VECTOR NETWORK ANALYZER)

Test and optimize performance of antennas, RF filters and more.

Learn more

SDR (SOFTWARE DEFINED RADIO)

Compatible with HPSDR, GNU radio and more.

Learn more

STREAMING

Stream signal continuously to SD card or to remote client computer.

Learn more

CALIBRATION

Makes it easy to perform DC and freq. calibration.

Learn more
