Terasic’s SoC FMC Daughter Card is an extension and evaluation platform that provides cost-effective extension opportunity and effortless prototyping/evaluation for our clients’ to simplify the system design.

In addition to its FMC connectivity, the platform also includes multiple peripherals ranging from Arduino UNI R3 Header (supporting ADC), 2x5 GPIO header, MircroSD card and UART to support various applications without having to develop custom hardware.

The SoC-FMC Daughter Card is compatible with all Terasic development boards that feature the standard FMC connector. (Agilex 7 FPGA Starter Kit , Apollo Agilex SoM , Apollo S10 SoM , HAN Pilot Platform , TR5 FPGA Development Kit , etc.)

• FMC Low-Pin Count Interface, Support VADJ 1.2/1.5V/1.8V
• Button x2, Switch x2, LED x4
• MicroSD Socket
• UART to USB Port
• 64Mbit QSPI Flash
• 2x5 GPIO Header
• 1x6 I2C Header
• Arduino UNI R3 Header, Support ADC
• 2x5 and mipi-10 shared bus JTAG Header

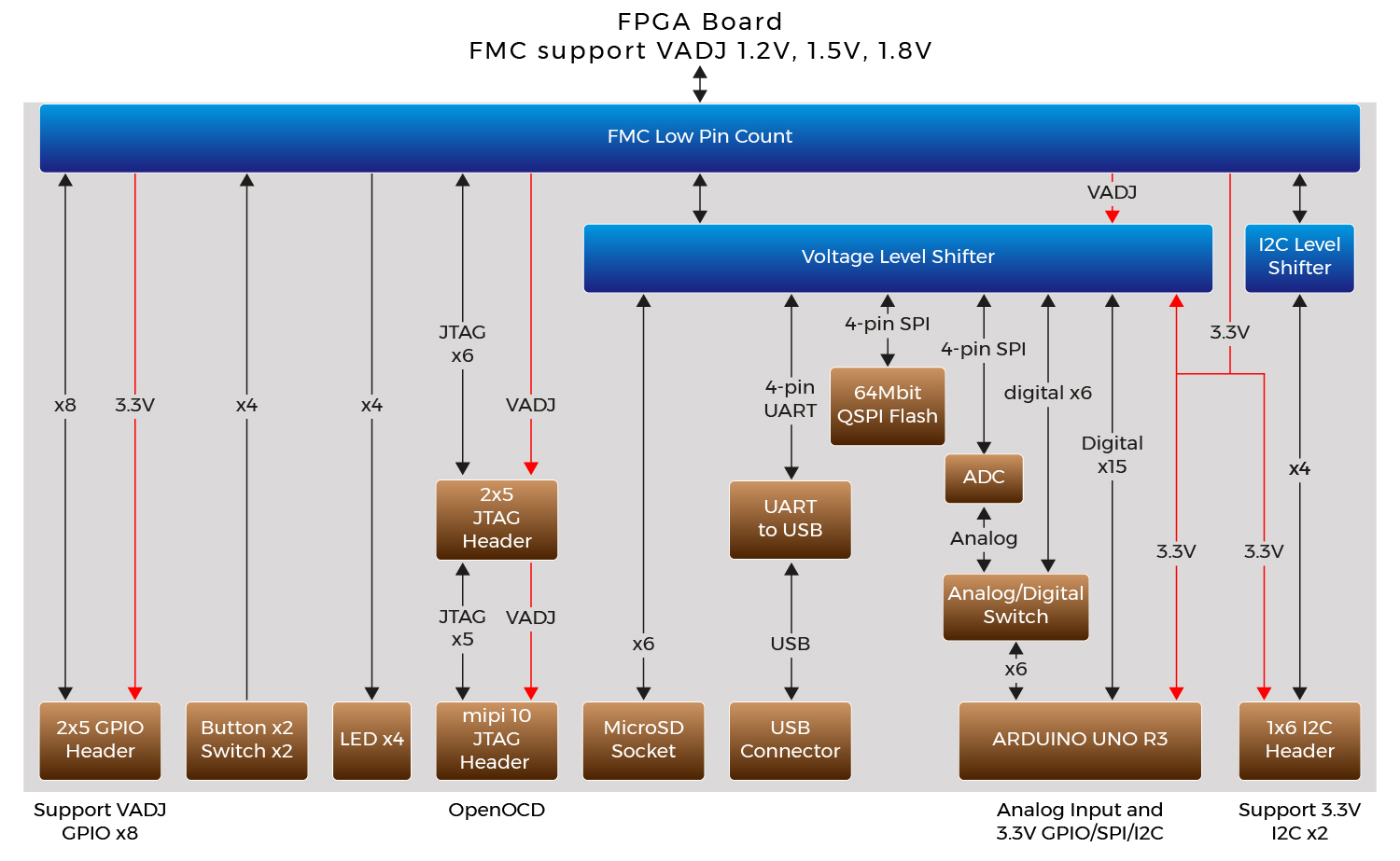

Block Diagram

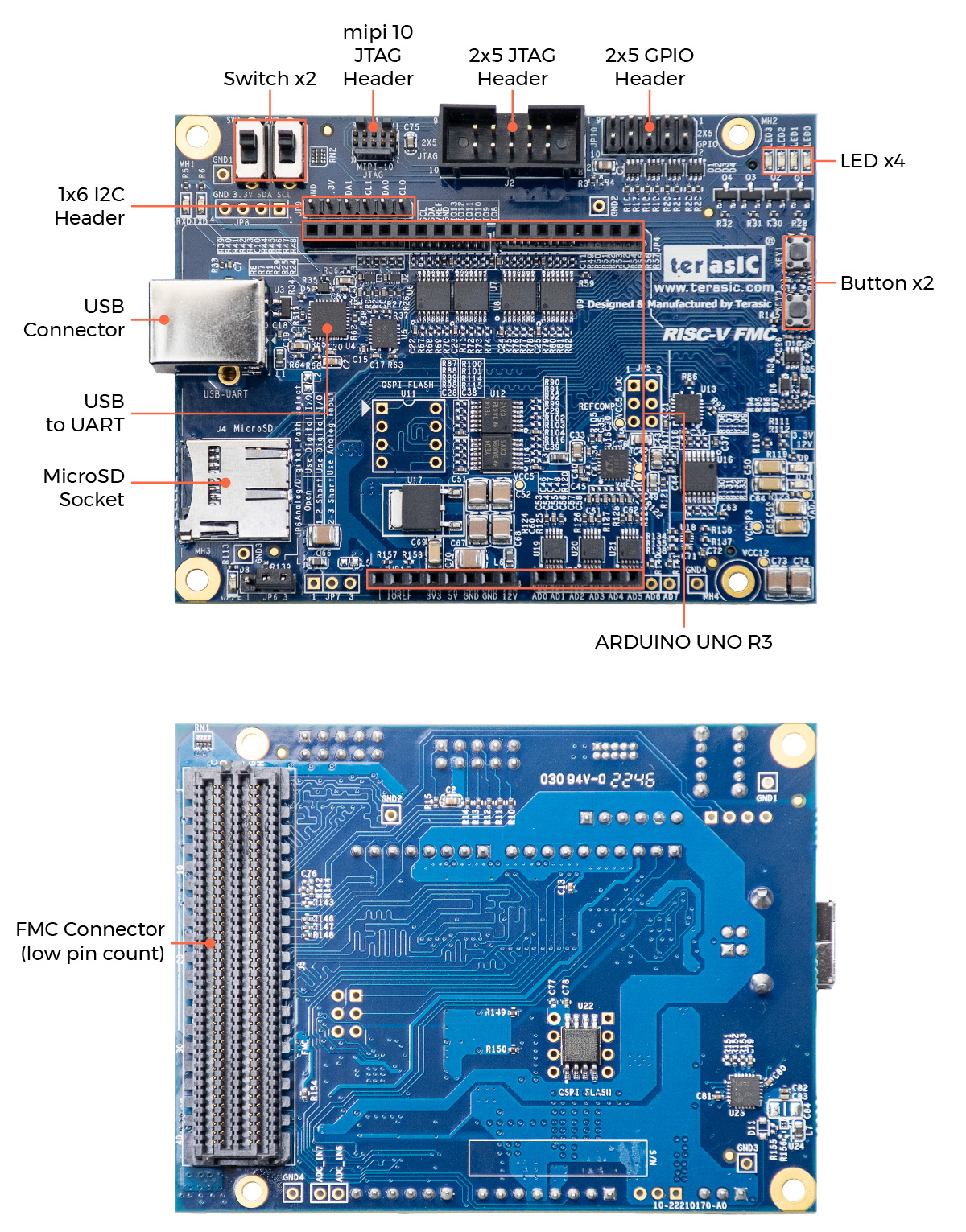

▶ Layout

• Documents

  Title	Version	Size	Date	Download
  SoC-FMC Schematic	A1	9,067(KB)	2023-03-09

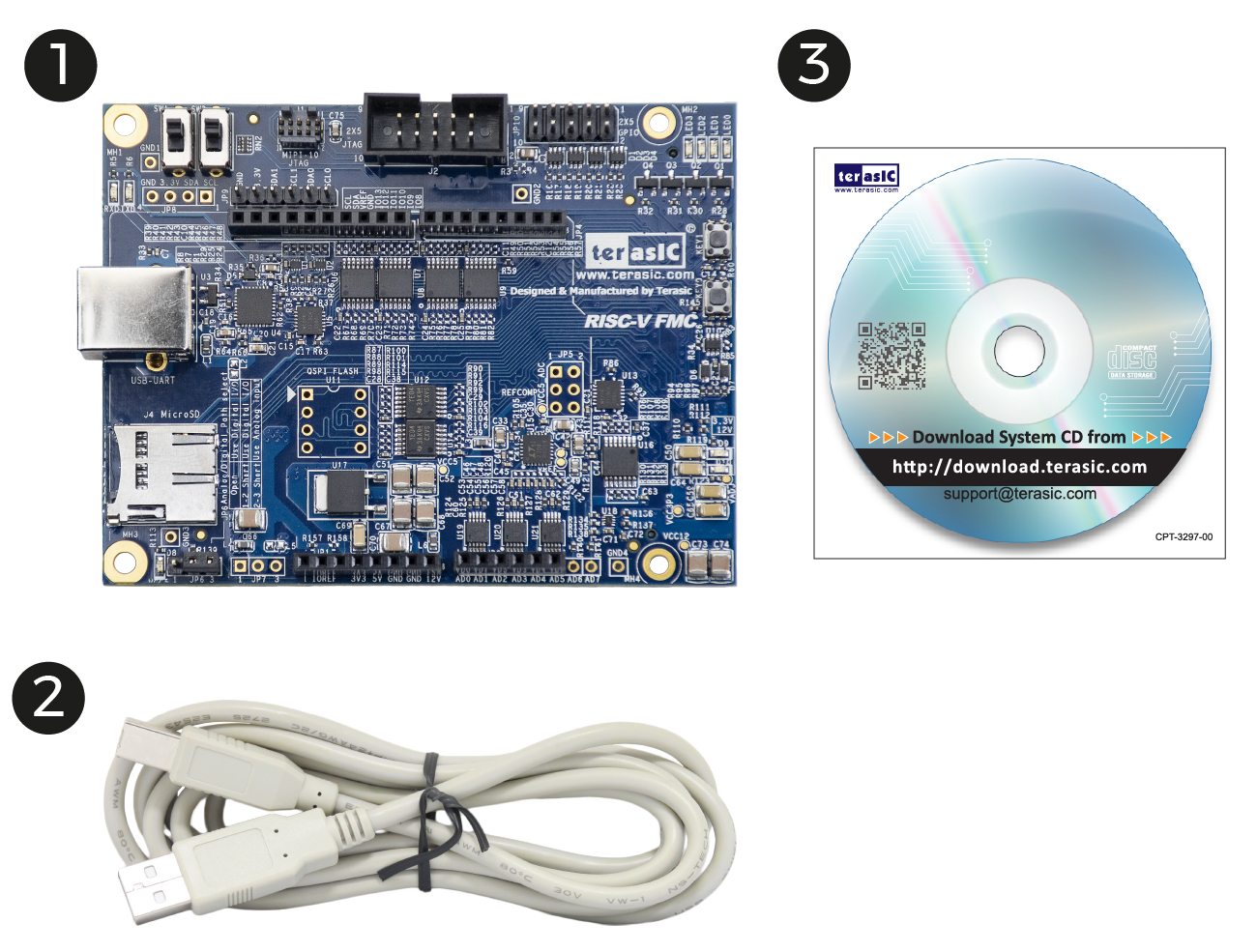

1. SoC-FMC Card x1
2. USB Cable x1
3. System CD Download Guide x1
