OVERVIEW　

USB-206 can multiplex USB 3.0 signal of two host PCs and connect it to a USB 3.0 device.
USB-206 can be controlled by specific USB ports and the physical switch.

Application examples

• Share a USB printer
• Share a USB strage
• Exchange data between the host PCs relaying a USB strage
• Control power of the device

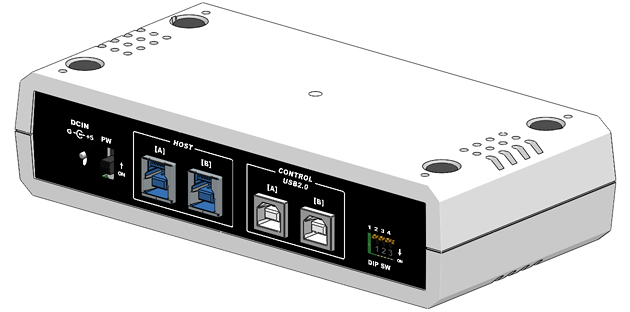

*Second and subsequent images are CG models



* Image with optional accessories



FEATURES

• USB3.0 SuperSpeed compatible.
  USB 2.0 High, Full and Low Speed device is also compatible.
• One or two PCs are possible to participate to control host switching.
  Third person, which will not be a host of the device, also can be a controller.
• Easy to control by a terminal software from control ports.
  All commands are assigned to ascii charactors.
• Phisical switch is a vailable.
  It switches the hosts without any software controller.
• Power control for the device.
  Turn ON/OFF by a command.
• Device over current detection.
  It detects the over current condition of the device and automatically shut it down.
• Dip switches for the power-on condition.
• Controllable from embedded Linux devices
  It operates as a device of the standard CDC-ACM class.
  For Linux distributions with embedded CDC-ACM device drivers, you can use them without installing the drivers.
  We do not support the use of Linux itself.
• Includes a USB 3.0 A-B cable (1.0m) x2
• Includes a USB 2.0 A-B cable (1.8m) x2
• Includes an AC adapter
• Non-use of 10 Restricted substances of RoHS directive
• MADE IN JAPAN

SPECIFICATION

Item	Description	Remarks
Model	USB-206
Input Power	5V DC	Supplied by AC adapter
Power Consumption	About 200mA	without host/device/control connections
OS limitation for hosts	none
OS limitation for controllers	Windows 10/8.1/8/7/Vista/XP	CDC driver
USB Connector of host	USB3.0 Standard B x2	ESD protection
USB Connector of device	USB3.0 Standard A x1	ESD protection
USB Connector of control	USB2.0 Standard B  x2	ESD protection
Contorol method	Serial communication via virtual COM port	Baudrate is fixed at 9600bps Hardware flow control is recommended
Status LED	Power LED Device status LED Host status LED x2
Operating Ambient Temperature	0 to 60 ℃ (32 to 140 [°F])	No condensation permitted
Operating Ambient Humidity	30 to 85%RH	No condensation permitted
Storage Ambient Temperature	0 to 60 ℃ (32 to 140 [°F])	No condensation permitted
Storage Ambient Humidity	30 to 85%RH	No condensation permitted
Dimensions	165 x 80.5 x 39 [mm] (6.496" x 3.169" x 1.535")	Without projections
Weight	Approx. 280 [g]	Only main body

* suspend, standby and other power saving function is not supported.

PACKAGE CONTENTS

• USB-206
• USB 3.0 A-B cable 1.0m x2
• USB 2.0 A-B cable 1.8m x2
• AC adapter
• Driver & Application CD

DOCUMENTATION

• User's manual, Outline Drawing, etc
•
•
