OVERVIEW　

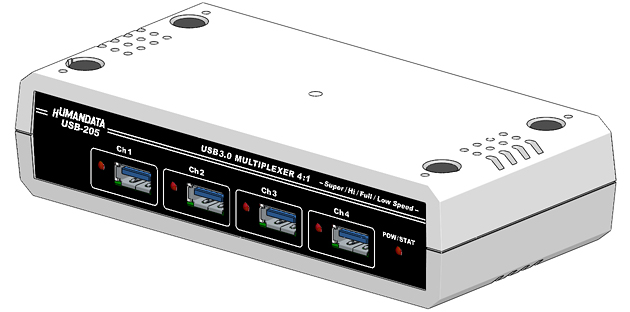

USB-205 is a USB 3.0 SuperSpeed (5Gbps) compliant 4 port USB multiplexer. Connect to USB port for control and transmitting a simple command from your PC, 4 port USB can be arbitrarily switch. It can promote labor-saving for testing process and auto-testing system of USB devices.
* Switching USB 3.0 port is the same as removing and re-mounting USB device. When you switch USB 3.0 port, it is necessary to confirm removing and recognizing the device by your application.

Application examples

• Operation test of USB devices
• Switching USB devices



*Second and subsequent images are CG models

FEATURES

• Switch 4 USB ports
  You can switch 4-channel USB 3.0 port from controller USB 3.0 port by using virtual COM port.
• Supports High Speed (480Mbps), SuperSpeed (5Gbps), High Speed (480Mbps), Full Speed (12Mbps) and Low Speed (1.5Mbps)
• Simple Current Mesurement Function
  USB-205 can measure current consumption of USB device. (The measurement value is digital value and it's not calibrated.)
• Simple Command
  You can operate with simple single character command
• Controllable from embedded Linux devices
  It operates as a device of the standard CDC-ACM class.
  For Linux distributions with embedded CDC-ACM device drivers, you can use them without installing the drivers.
  We do not support the use of Linux itself.
• Housing material: Plastic
• DIN rail and screw mountable(Attachment is required)
• Includes a USB 3.0 A-B cable (1.0m)
• Includes a USB A-miniB cable (1.0m)
• Includes an AC adapter
• Non-use of 10 Restricted substances of RoHS directive
• MADE IN JAPAN

SPECIFICATION

Item	Description	Remarks
Model	USB-205
Input Power	5VDC	Supplied by AC adapter
Common USB port	USB B Connector	USB3.0 SuperSpeed USB 2.0 Hi, Full and Low Speed ESD protection
Switch side USB port	USB A Connector	USB3.0 SuperSpeed, USB 2.0 Hi, Full and Low Speed ESD protection
Controller side USB port	USB mini-B Connector	USB 2.0 Full Speed ESD protection
Control Method	Virtual COM port	Setting baud rate and other conditions is not necessary.
Support OS for controller side	Windows 10/8.1/8/7/Vista/XP	CDC driver OS of switch side USB port is not limited
Status LED	Power / Error x 1 Select display x 4	Bi-color LED
Operating Ambient Temperature	-10 to 60℃ (14 to 140 [°F])	No condensation permitted
Operating Ambient Humidity	30 to 85%RH	No condensation permitted
Storage Ambient Temperature	-10 to 60℃ (14 to 140 [°F])	No condensation permitted
Storage Ambient Humidity	30 to 85%RH	No condensation permitted
Dimensions	165 x 80.5 x 39 [mm] (6.496" x 3.169" x 1.535")	Without projections
Weight	Approx. 250 [g]	Only main body

* suspend, standby and other power saving function is not supported.

PACKAGE CONTENTS

• USB-205
• USB 3.0 A-B cable 1.0m
• USB A-miniB cable 1.0m
• AC adapter
• Driver & Application CD

DOCUMENTATION

• User's manual, Outline Drawing, etc
•
•
