Highly integrated RF module

It covers 300mhz~6ghz frequency band, and integrates a dual channel transceiver link. The maximum transmission real-time bandwidth is 250MHz, and the maximum reception bandwidth is 100MHz, which is suitable for general software radio platforms

Main Parameters

Chip model

AD 9371 chip is adopted

digit

16bit ADC & 14bitADC

Antenna switch

Support half duplex, full duplex, TDD/FDD mode

Coverage frequency

300MHz-6GHz

bandwidth

Send up to 250MHz, receive up to 100MHz

power amplifier

14dB@2GHz It supports the maximum 10dBm output of transmission power

RF impedance

matching 50Ω

Digital interface

JESD204B

Clock

Support internal or external reference clock

Optional GPS module

Provide reference clock and pulse synchronization signal through GPS

FMC interface

HPC

structure size

76.5X69mm

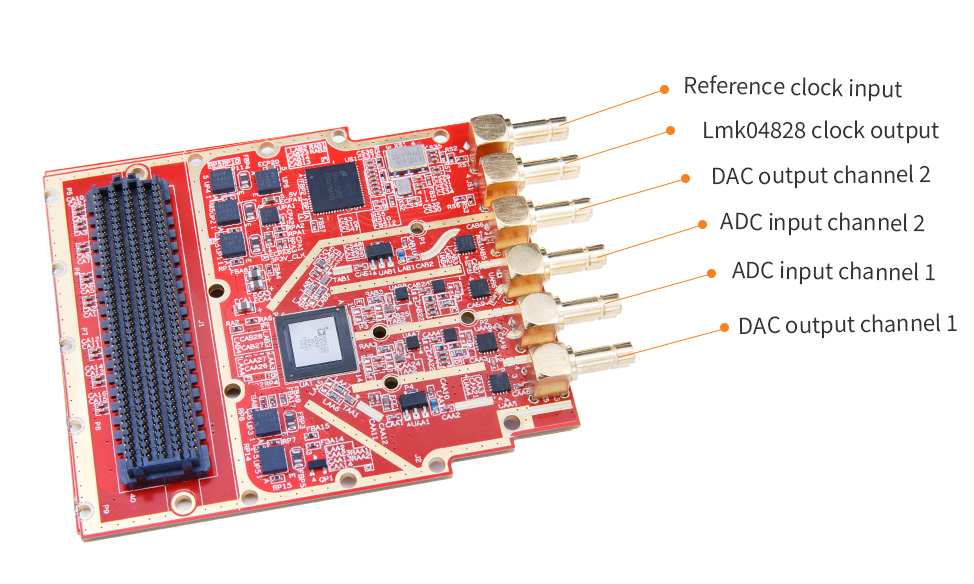

Interface display

Functional structure

Professional front-end design

The RF front-end includes power amplifier, antenna switch, balun and other components, which improves the practicality of the equipment. The main differences between fmc9371 and ad9371 development boards are as follows:

RF index

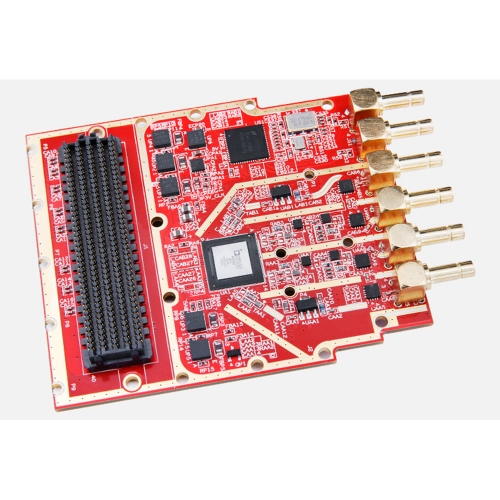

Product display
