짧은설명
XILINX Kintex7 SoM FPGA Core Board XC7K325T
판매가
829,400 <관세ㆍ부가세 포함>
구매제한
옵션당 최소 1개
구매혜택
할인 : 적립 마일리지 :
배송비
0원 / 주문시결제(선결제) 조건별배송
택배
방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호
상품코드
1000618742
제조사
ALINX
AC7K325B
0
총 상품금액
총 할인금액
총 합계금액

상품상세정보

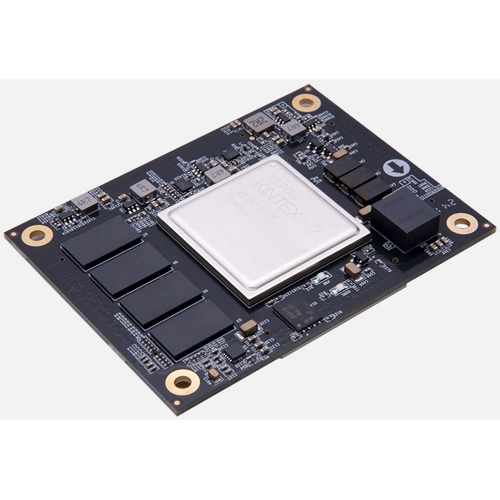

Xilinx Kintex-7 SoM FPGA Core Board

PCIe 2.0 X 8, High-Speed GTX Transceiver, 2G DDR3

Apply to High-Speed Data Transmission and Exchage, SFP Communication Video Transmission, Data Processing, Industrial Control




Key Features

AC7K325 EN.jpg
AC7K325 EN2.jpg

Corresponding Development Board

·AV7K325






*Learn about the corresponding development board, Click to see details>>



·AV7K300






*Learn about the corresponding development board, Click to see details>>



Product Parameters



Main Parameters

Core Board Chip

AC7K325B

FPGA Chip

XC7K325T-2FFG900I

Logic Cells

326,080

Look Up Tables (LUTs)

50,950

CLB Flip-Flops

407,600

Block RAM

16,020Kb

DSP Slices

840

QSPI FLASH

128Mbit

DDR3

2GB

Number of IOs

276

Number of Differential Pairs

46

PCIe Gen2

X8

Transceiver

16 X12.5Gb/s max

XADC

1 个 12bit,  1Mbps AD

Chip Level

Industrial Grade

Speed Grades

-2

Active Differential Crystal

2

Adjustable Voltage IOs

92



Interface and Function

DDR3

4 X DDR3 512MB, 64 bit Bus, Data Rate1600Mbps

QSPI Flash

128Mbit, Used as FPGA User Data Storage

Crystal Oscillator

200MHz Provide Stable Clock Source for the System
125MHz Provide Stable Clock Source Input for the GTX transceiver

Transceiver

16 GTP, each up to 12.5Gb/s, Used for SFP and PCIe Data Communication

Working Temperature

Industrial Grade -40°c to 85°c

PCIe 2.0

Supports PCI Express 2.0 x 8

XADC

2bit, 1Mbps AD

LED灯

1 LED

120-Pin Expansion Ports

4 x 80-Pin Panasonic Industrial Grade Connectors ( AXK5A2137YG) The matching connector in the carrier board is AXK6A2337YG



Power Supply Parameters

Voltage Input

+5 V DC







Package List

FPGA SoM Board

1

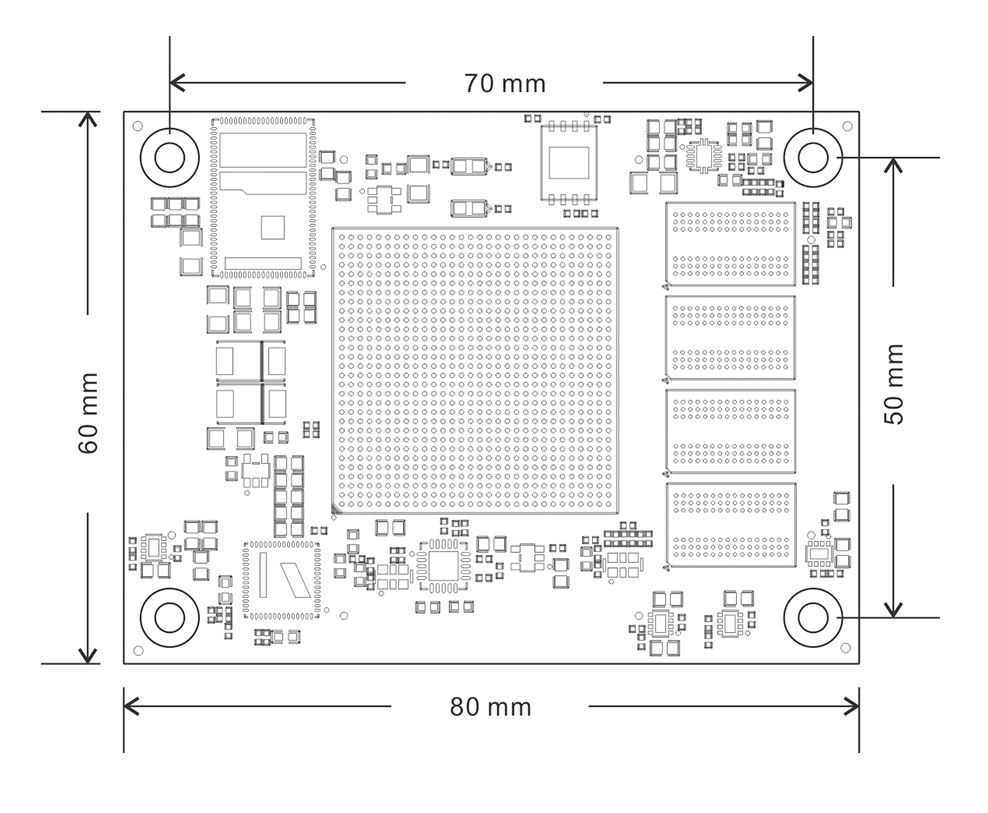

Structure Size

尺寸大小

3.15 inch x 2.36 inch

Board Thickness

0.06 Inch

Connector Height

0.12 Inch

Number of Layers

8-Layer PCB




SFP Communication, Video Processing High-speed Data Acquisition, Transmission and Processing

Industrial grade chip 16 x GTX High-Speed Transceiver

12.5Gb/s, 16 x GTX High-Speed Transceiver, DDR3




Get started quickly,Shorten Development Learning Time

Documents to Accelerate Development

Provide Schmatic, PCB, Structure Size, Package, Reference Design Convenient for secondary development




Low Power consumption

Kintex-7 Cost-Effective

High-Speed Data Transmission, High Bandwidth, High Capacity, Apply to High-Speed Optical Fiber Data Communication Video Image Processing, High-Speed Data Acquisition, etc.
