Xilinx Zynq -7000 FPGA Core board（Stamp hole）

2x ARM Cortex™-A9

Functional interface

Product parameters

Main Parameters

Core board

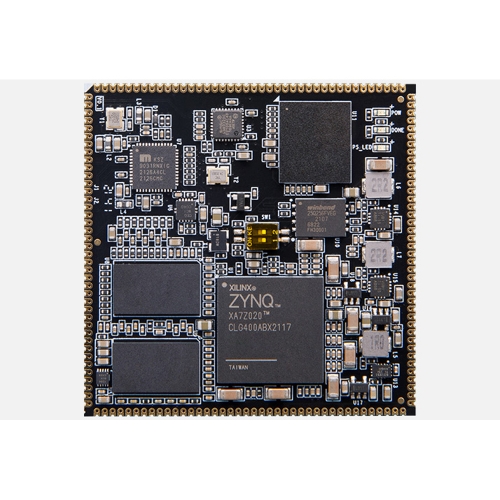

M7020

FPGA Chip

XC7Z020

Speed Grades

-2

Working Temperature

Industrial Grade，-40°C~85°C

CPU kernel

2 x ARM Cortex-A9

CPU frequency

766MHz

GPU Graphic processing sheet

1x Tri-mode Gigabit Ethernet,1x USB 2.0

High speed connection interface

1x SD2.0, 1x JTAG

PS DDR4

1GB, 32bit

QSPI | EMMC Flash

32MB | 8GB

Logic Cells

85k

Flip-Flops

106,400

LUTs

53,200

Total Block RAM

4.9Mb

Clock Management Tiles (CMTs)

4

DSP Slices

220

PS MI/Os

7

PL I/Os

100

Connection mode

Stamp hole



Functions and interfaces

QSPI Flash

One piece of 256Mbit QSPI flash, which can be used as FPGA user data storage

EMMC Flash

8GB, used in zynq system, can be used as a large capacity storage device of the system

Crystal oscillator

One passive crystal oscillator is provided to PS system



Power Supply Parameters

Voltage Input

+5 V DC



Package List

FPGA SoM Board

1







Structure Size

Size Dimension

53.8mm x53.8mm

Number of Layers

12-Layer PCB





With memory DDR3 super combination

Industrial chip dual ARM 2x CortexA9

766MHz，；PS 1G RAM



Get started quickly and shorten the development and learning time

Provide information for secondary development

Provide schematic diagram, PCB structure diagram (PDF), packaging, reference design, etc. to facilitate secondary development
