ALINX Xilinx ZYNQ7000 ARM FPGA Core Board SOM XC7Z020
판매가
371,800 <관세ㆍ부가세 포함>
구매제한
옵션당 최소 1개
구매혜택
할인 : 적립 마일리지 :
배송비
0원 / 주문시결제(선결제) 조건별배송
택배
방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호
상품코드
1000618732
제조사
ALINX
AC7021B
0
총 상품금액
총 할인금액
총 합계금액

상품상세정보

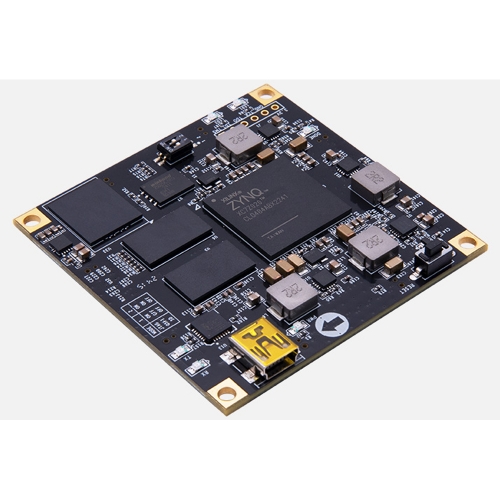

Xilinx Zynq-7000 SOC FPGA Core Board

ARM+FPGA SOC Technology

Dual-Core ARM Cortex-A9,Ultra Small Size,Industrial Grade


key Features


Corresponding Development Board

·AX7021

PRODUCT PARAMETERS



Core Board Parameters

Core Board Chip

AC7021

FPGA Chip

XC7Z020-2CLG484I

Kernel

Dual-Core ARM Cortex-A9,Main Frequency 767MHz

RAM

DDR3,1GB,Data Rate 1066Mbps

Chip level

Industrial grade, working temperature -40 ° c~85 ° C

Logic Cells

85K

Look Up Tables (LUTs)

53,200

CLB Flip-Flops

106,400

Multiplier

220

Block RAM

4.9Mb

EMMC FLASH

8GB

QSPI FLASH

256MBit

PS MIOs (ARM)

39

PL IOs (FPGA)

198

LVDS

48

Voltage Adjustable IOs

100



Interface and Function

DDR3

Two 512MB DDR3, 32bit Bus, Data Rate 1066Mbps

QSPI Flash

256Mbit, Used as FPGA User Data Storage

EMMC Flash

8GB, Used as a Large-Capacity Storage Device in the ZYNQ System

JTAG

Reserve a 6-pin JTAG interface for Download and Debugging

AD Converter

Integrated ADC and 2 AD Converters to Measure on-chip Voltage and Sense Temperature, Sampling Rate 1MBPS

Crystal Oscillator

33.333 Mhz Provide Stable Clock Source for the PS System
50MHz Provide Extra Clock for PL Logic

USB Uart

Used for Serial Communication with PC , and Provide 5V Power

KEY

1 Reset Key

Expansion Ports

4 x 80-Pin Panasonic Industrial Grade Connectors ( AXK580137YG) The matching connector in the carrier board is AXK680337YG

LEDs

2 LED lights, 1 Controlled by PS, 1 Controlled by PL

DIP Switch

Used to Configure the Startup Mode of the ZYNQ System: JTAG Debug Mode, QSPI FLASH and SD Card Startup Mode



Power Supply Parameters

Voltage Input

+5 V DC







Packing list

FPGA Core Board

1

Mini USB Cable

1

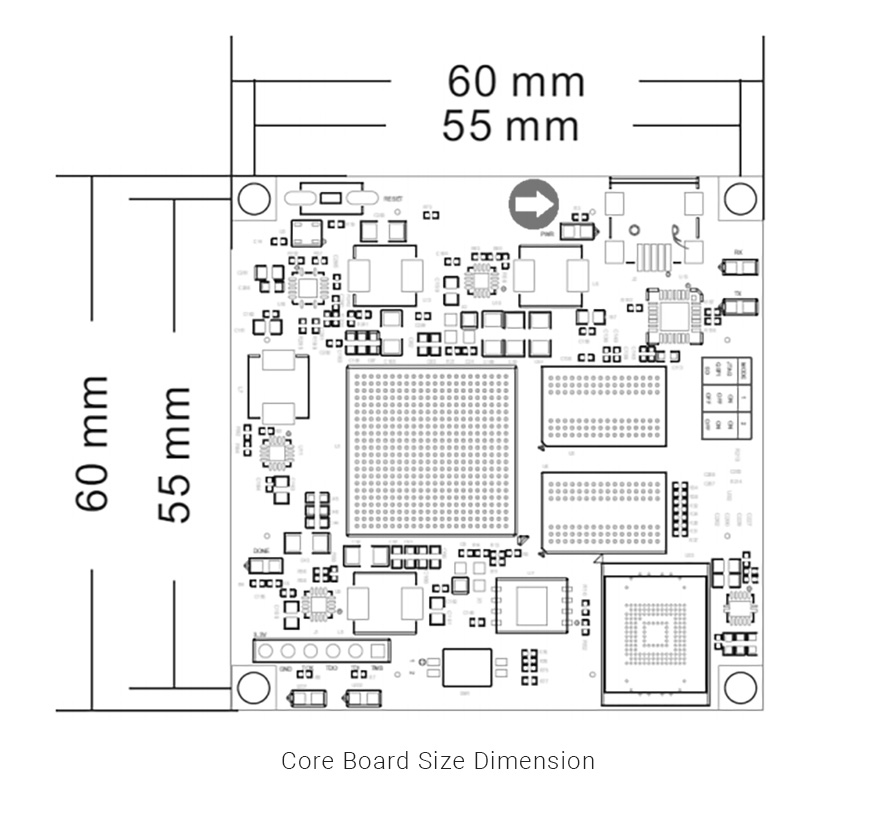

Structure Size

Size Dimension

2.36 inch x 2.36 inch

Connector height

0.08 inch

Number of Layers

10-Layer Core Board PCB









Super Combination with DDR3 Memory

Industrial Grade Chip ARM Dual-Core CortexA9

2x  ARM Cortex-A9,767MHz;1GB RAM




Get Started Quickly ,Shorten Learning and Development Time

Provide Documents to Study

Provide Schematic, PCB, Size Dimension, Package and Reference Design, that to Accelerate the Development of products with Core Board
