Notice for purchase:

The core boards of this series are AC7010 and AC7010C

The two models will be delivered randomly according to the inventory, please distinguish them according to the QR code label

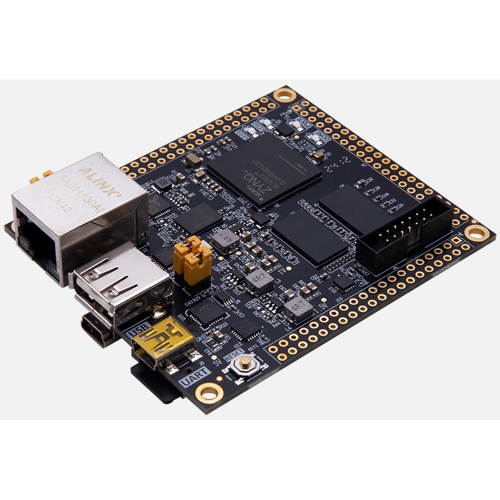

Xilinx Zynq 7000 SoM FPGA Core Board

ARM+FPGA SOC Technology

Ultra Small Size, Dual-Core ARM Cortex-A9, Industrial Grade




key Features

AC7010 EN2.jpg
AC7020 CN.jpg



PRODUCT PARAMETERS



Core Board Parameters

Core Board Chip

AC7010

FPGA Chip

XC7Z010-1CLG400I

Kernel

Dual-Core ARM Cortex-A9

RAM

DDR3 512MB, Data Rate 1066Mbps

Chip level

Industrial grade, working temperature -40 °c~85 °C

Logic Cells

28k

Look-Up Tables (LUTs)

17600

CLB Flip-Flops

35200

Multiplier

80

Block RAM

85K

PS MIO

8

PL IO

94



Interface and Function

DDR3

Can be Used as ZYNQ Chip Data Cache, Operating System Memory

QSPI Flash

256Mbit, Used for Storage of System Files and User Data

Crystal Oscillator

33.333Mhz, Provide Stable Clock Source for the PS System
50MHz, Provide Extra Clock for PL Logic

Gigabit Ethernet

10 / 100 / 1000M Ethernet with RJ-45 Interfaces for Data Exchange

JTAG

14-Pin JTAG Interface to Debug and Download ZYNQ System

LEDs

2 User LEDs, 1 Controlled by PS, 1 Controlled by PL

USB HOST

Used for Connect USB Peripherals such as Mouse, Keyboard and U-Disk

USB OTG

Used for OTG Communication with PC or USB Device

USB Uart

Used for Power the board or Serial Communication with External Devices

KEYs

1 Reset Keys, used to reset CUP

Expansion Port

Three 40-Pin Expansion Ports ( 0.1 inch Pitch ), Expand the IOs Connect with 7 inch LCD Screen, Camera, AD/DA and Other Modules.

Micro SD Card Slot

1 Micro SD TF Card, Store Operating System Image and File System

Start Mode

Three Startup Modes: JTAG Debugging, QSPI FLASH and SD Card



Power Supply Parameters

Power by

USB Cable







Package List

FPGA Core Board

1

Card Reader

1

Mini USB Cable

1

Pin

2

TF Card

1

Pillar

4 Pieces





Structure Size

Size Dimension

2.95 inch x 2.52 inch

Number of Layers

8-Layer FPGA Development Board PCB




Expansion Port Definition





Super Combination with DDR3 Memory

Industrial Grade Chip ARM Dual-Core CortexA9

2x ARM Cortex-A9, 766MHz; 1GB RAM




Get Started Quickly, Shorten Learning and Development Time

Provide Documents to Study

Provide Schematic, PCB, Size Dimension, Package and Reference Design, that to Accelerate the Development of products with Core Board




Low Power Consumption, High Performance

Rich Expansion Interfaces

Apply to High-speed Data Communication and Acquisition Video,Audio,Image Acquisition and Processing, Machine Vision, Motion Control
