Xilinx Zynq-7000 SOM FPGA Core board

ARM+FPGA SOC technology

2 x ARM Cortex-A9，Ultra small size，Industrial chip



Functional interface

Corresponding Development Board

·AX7Z010





*Learn about the corresponding development board, Click to see details>>



Product parameters

Main parameters

Core board

AC7Z010

FPGA model

XC7z010-1clg400I

kernel

2 x ARM Cortex-A9

RAM

DDR3，1GB，32bit，Data rate 1066Mbps

Chip level

Industrial grade, operating temperature -40°C~85°C

Logic Cells

28K

Lookup table

17600

trigger

35200

DSP slice

80

Block RAM

2.1Mb

PS MIO

48

PLIO

96



Functions and interfaces

DDR3

32bit，Data rate 1066Mbps

QSPI Flash

One piece of 256Mbit QSPI flash, which can be used as FPGA user data storage

AD converter

Two AD converters can measure the on-chip voltage and temperature, and the sensing sampling rate is 1Mbps

Crystal oscillator

33.33M PS

Expansion port

2-way 120 pin Panasonic industrial connector

LEDs

1 LED power indicator



Power parameters

input voltage

5V







Packing list

FPGA Core board

1





structure size

Size

35mm*42mmx5.5mm

Board Thickness

3.0mm

Number of Layers

12-Layer PCB







Super Combination with DDR3 Memory

Industrial Grade Chip ARM 2 x CortexA9

2x  ARM Cortex-A9，767MHz；1GB RAM 内存

Get started quickly ，Shorten Development Learning Time

Documents to Accelerate Development

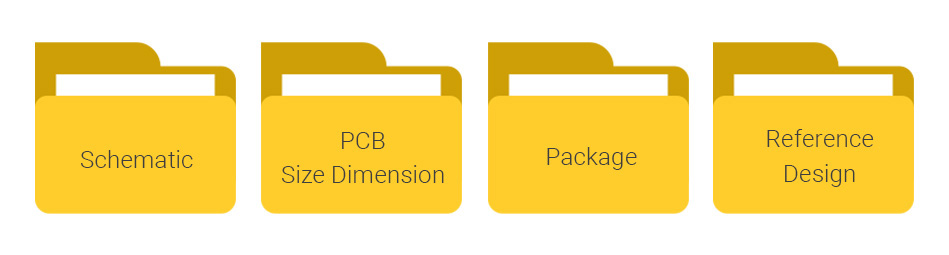

Provide Schmatic, PCB, Structure Size, Package, Reference Design Convenient for secondary development

Low Power Consumption, High Performance

Small and powerful

It is suitable for high-speed data communication, video and audio image acquisition and processing, high-speed data acquisition, machine vision, motion control, etc
