Xilinx Kintex-7 Platform 4K Video Processing

Two 4K@30Hz HDMI Input, Two 4K@30Hz HDMI Output PCIE 2.0 X8, 10G SFPX 4

Techinal Support

AV7K325 Supporting Verilog HDL Demos and Docuemnts. All Doucments Saved in Dropbox, after buy the board, email to get it.

00. vivado2017.4 Installation
01. LED water lamp experiment and simulation in vivado
02. Key detection experiment in Vivado
03. PLL Experiment in Vivado
04. Serial port Transmitting and Receiving experiment
05. Key debounce experiment
06. LM75 Temperature Test Experiment
07. SD Card Read and Write Experiment
08. HDMI Programming Output Experiment
09. DDR3 Read Write and Simulation Experiment
10. Recording and playback Experiment of AN831 Module
11. SD Card Music Player Experiment
12. Character Display Experiment
13. SD Card Read BMP Picture Display Experiment

14. OV5640 Camera Display Experiment
15. SOBEL Edge Detection Experiment
16. AD7606 Waveform Display Experiment
17. ADDA Testing Experiment
18. AD9767 Waveform Display Experiment-Dual channel Sine Wave Experiment
19. AD9767 Waveform Display Experiment-Dual channel Triangle Wave Experiment
20.GTX Fiber Optic Communication IBERT Testing Experiment
21. GTX Fiber Optic Data Communication Experiment
22. Video Image GTX Fiber Optic Communication Testing Experiment
23. PCIe Speed Test Experiment
24. PCIe HDMI Input Experiment
25. PCIe HDMI Output Experiment
26. PCIe xdma Interface Experiment Testing Experiment



Product Package



FPGA Board

AN9767 Collection Package

AN706 Collection Package

AN9238 Collection Package

Video Package

Luxury Package

FPGA Board

●

●

●

●

●

●

Downloader Cable USB

●

●

●

●

●

●

AN9767



●







●

AN706





●





●

AN9238







●



●

Binocular Camera









●

●

4.3-inch LCD









●

●



Supporting Modules in the Package, Click to Learn More

AN9767
Dual-Channels DA Module

AN706
8-Channels AD Module

AN9238
Dual-Channels AD Module

AN5642
Binocular Camera Module

4.3-inch
Capacitive LCD Screen



Key Features

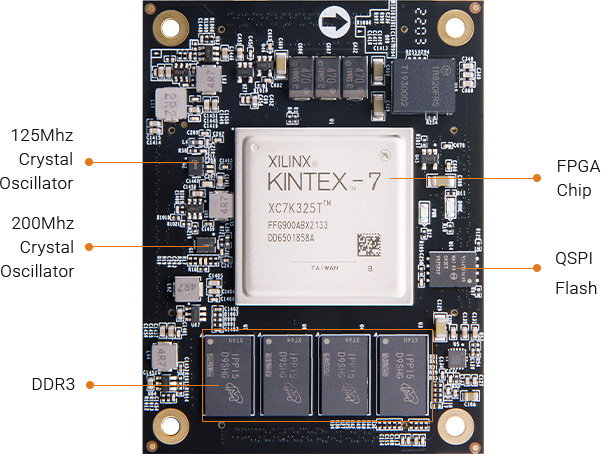

·Core Board SOM



*Learn More about the Core Board, Click to View >





·FPGA Board

Product Parameters

Main Parameters

FPGA Chip

XC7K325T-2FFG900I

PCIe Gen2

X8

Logic Cells

326,080

Transceiver

16X 12.5Gb/s max

Look Up Tables (LUTs)

50,950

CLB Flip-Flops

407,600

Block RAM

16,020Kb

DSP

840

Temperature class

Industrial Grade  -40℃-85℃

XADC

1 个 12bit 1Mbps AD

Speed Grades

-2

Active Differential Crystal

2

Interface and Function

DDR3

4 x 512MB DDR3, 64 bit Bus, Data Rate1600Mbps

QSPI Flash

128Mbit, Used as FPGA User Data Storage

Ｃrystal Oscillator

200MHz Provide Stable Clock Source for the System 125MHz Provide Stable Clock Source Input for the GTX transceiver

Transceiver

16 GTP, each up to 12.5Gb/s, Used for SFP and PCIe Data Communication

PCIe 2.0 x 8

Used for PCIe communication with computer motherboard Single Channel Communication Rate can be up to 5Gbps

SFP X 4

The Receiving and Transmitting speed of Each Channel is up to 10Gb/s

JTAG

Standard JTAG Port for Debug and Download of FPGA Program

HDMI

2 HDMI Input/ Output each, Supports up to 4K@30Hz

USB Uart

Used for Serial Communication with PC or External Devices

SATA Interface

2 SATA Interface, External Hard Disk

Key

1Micro SD Card Slot, Support the SD Mode and SPI Mode

LED

1 LED In the Core Board, 4 LEDs in the Carrier Board

按键

2 User Keys

40-Pin Expansion Ports

Reserved 40-Pin Expansion Ports (0.1 inch Pitch), Can be Connect with Various ALINX Modules (Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules).

Power Supply Parameters

Voltage Input

+12 V DC

Current Input

Max. Current 3A

Package List

FPGA Board

1

DC Fan (Fixed on the Board)

1

Mini USB Cable

1

USB Downloader Cable

1 Set

12V Power Adapter

1





Structure Size

Size Dimension

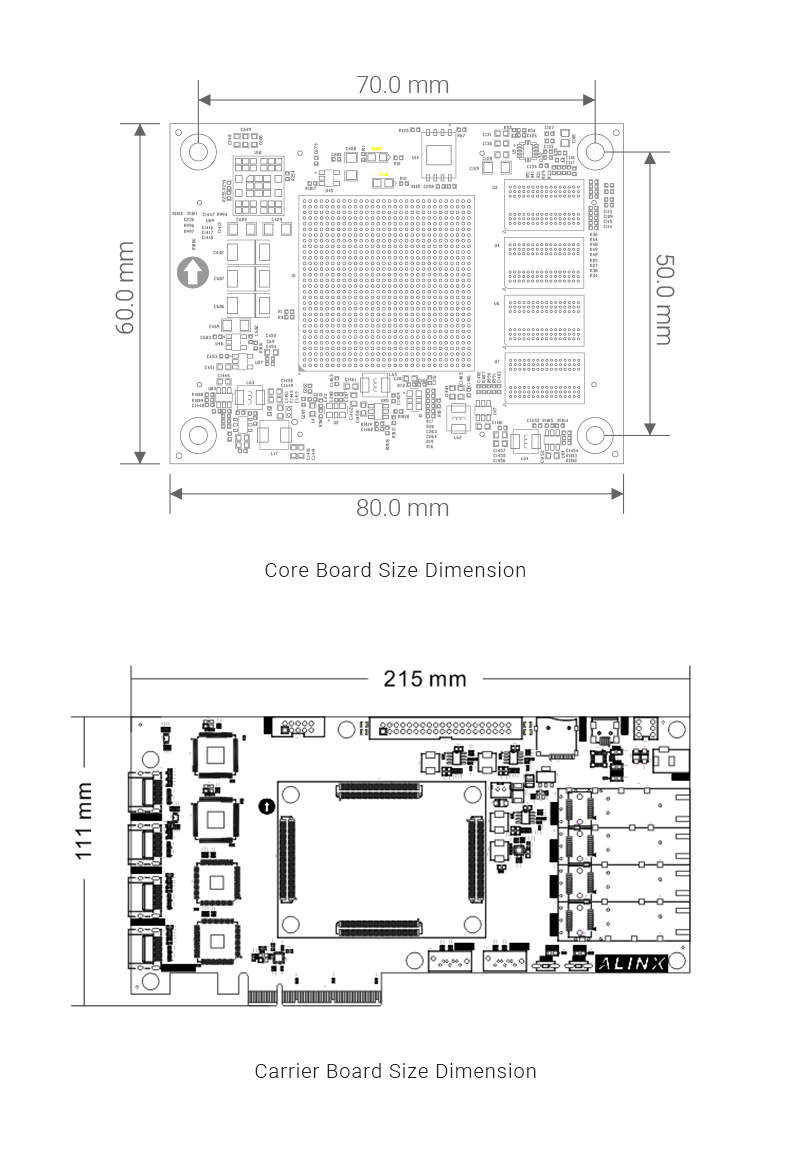

Core Board 3.15 inch x 2.36 inch, Carrier Board 8.46 inch x 4.37 inch

Number of Layers

8-Layer Core Board PCB, 4-Layer Carrier Board PCB Reserve Independent Power Layer and GND Layer

Rich expansion interface High-Speed Transmisson

SFP Communication, PCIe Accelerator Video Processing, High-Data Transmission



Core Board + Carrier Board Customers Can Directly Use the Core Board in their Design

Rich Interfaces in the Carrier board. PCIe x 4, 4 SFP, USB Uart, SD Card Slot 2 HDMI Output, Supports 4K@30Hz Output 2 HDMI Input, Support 4K@30Hz Input

Meet the Various PCIe High-Speed Data Transmission Video Image Processing and Industrial Control Requirements

HDMI iNPUT AND oUTPUT

Verify PCIE Dedicated Board

Verify PCIE Solutions and Accelerate PCIE Development

The video signal (4K) is collected through the HDMI input interface, uploaded to the computer through the PCIE interface, and the upper computer displays the collected video image in real time

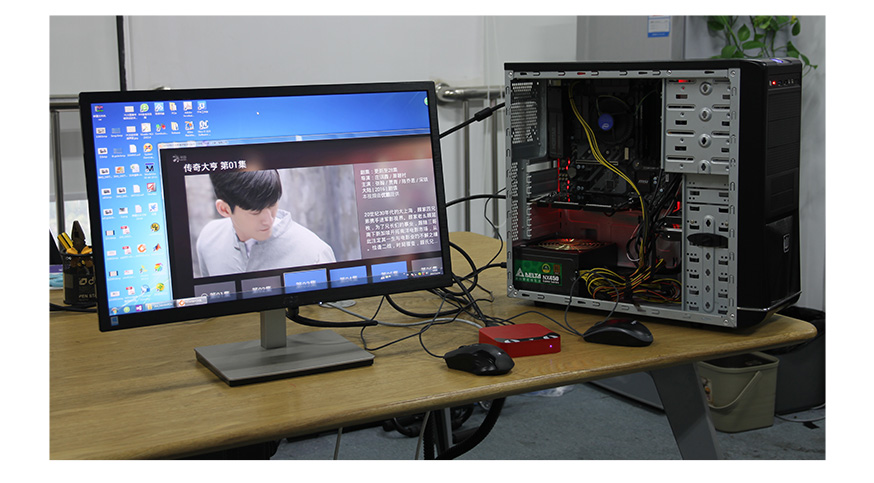

The Host Computer Grabs the Computer Desktop, and Transmits it to the FPGA through the PCIE Interface. The FPGA Outputs through the HDMI Interface, and the Monitor Displays in Real Time

PCIE Read AND wRITE tEST

PCIE High-Speed Data Transmission

Meet Various PCIe High-Speed Data Transmission, Video Image Processing and Industrial Control Requirements



Binocular Camera Module

Collection Camera Acquisition System

Intelligent Identification, Medical Security Vehicle Digital, Industrial Control, Smart Grid

Dual Lens Camera Module On-Board Demo

The Binocular Camera Module AN5642 for Video Capture, and Displays it on the Monitor through the HDMI Interface of the FPGA Development Board, to Realize Display Simultaneously.



Data Collection Display

Signal Data Acquisition System

AN9767/AN706 Module On-Board Demo

*The Signal Source Output Signal is Connected to the AN9767 Module,  and the Waveform Signal is Displayed through the Oscilloscope
*The Signal Source Output Signal is Connected to the AN706 Module,  Run the System to Draw the Waveform Data, and is Displayed to the  Monitor through the HDMI Interface of the FPGA Development Board
