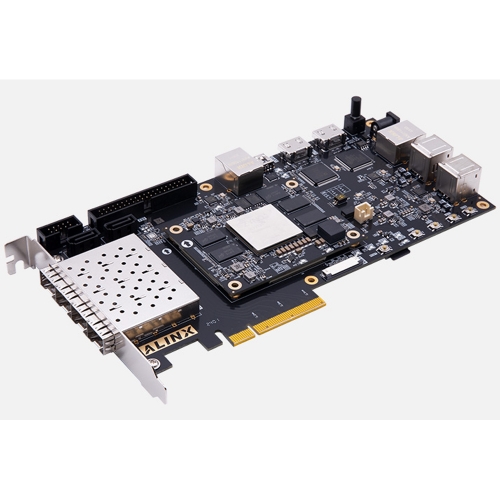

XILINX Zynq-7000 PCIE ARM FPGA Development Board XC7Z035
판매가
1,243,000 <관세ㆍ부가세 포함>
구매제한
옵션당 최소 1개
구매혜택
할인 : 적립 마일리지 :
배송비
0원 / 주문시결제(선결제) 조건별배송
택배
방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호
상품코드
1000618692
제조사
ALINX
AX7Z035B
0
총 상품금액
총 할인금액
총 합계금액

상품상세정보

Xilinx Zynq-7000  FPGA Board

PCIe 2.0, SFP x4, Gigabit x 2 8GB EMMC, 2GB DDR3, HDMI Input/Output,GTX

Apply to PCIe, Video Image Proessing SFP / Ethernet Communicaion


Techinal Support

AX7Z035 Supporting Verilog HDL Demos and Docuemnts Linux Kernel: petalinux 4.9.0-xilinx-v2017.4 All Doucments Saved in Dropbox, after buy the board, email to get it.

Course_S1_Basic Tutorial
Part 01: Software Package Introduction and FPGA Board Inspection
Part 02: Introduction to ZYNQ
Part 03: Vivado development environment
Part 04: PL's "Hello World" LED experiment
Part 05: HDMI output experiment
Part 06: HDMI Pass-through ILA Debugging Experiment
Part 07: PL-side DDR3 read and write test
Part 08: GTX transceiver bit error rate test IBERT experiment
Part 09: Experience ARM, bare metal output "Hello World"
Part 10: PS lights up the LED lights of the PL
Part 11: PS timer interrupt experiment
Part 12: PL button interrupt experiment
Part 13:Ethernet Experiment (LWIP)
Part 14: Custom IP experiment
Part 15: Use VDMA to drive HDMI display


Part 16 Curing Programs
Part 17: PCIE Testing
Part 18: PCIe transmits video to HDMI display
Part 19: HDMI video input to PCIe capture display
Part 20: Developing PCIe under Linux
Part 21: Install virtual machine and Ubuntu system
Part 22: Ubuntu installs the Vivado software for Linux
Part 23: Petalinux tool installation
Part 24: NFS service software installation
Part 25: Customizing Linux with Petalinux
Part 26: Develop Linux programs using the SDK
Part 27: GPIO experiment under Linux
Part 28: HDMI display under Petalinux
Part 29: Use the Debian 8 desktop system
Part 30: Making QSPI Flash booted Linux
Part 31: QSPI and EMMC boot Linux输

Course_S2_SDK Application Tutorial
Part 01: PS side UART read and write control
Part 02: Use of XADC
Part 03: PL read and write PS DDR data
Part 04: Realize PS and PL data interaction through BRAM
Part 05: Use of dual core AMP
Part 06: Use of “Free RTOS”under ZYNQ
Part 07: DMA loop test
Part 08: Use of DMA--DAC waveform generator  (AN108)
Part 09: Use of DMA--ADC oscilloscope (AN108)
Part 10: Use of DMA--ADC oscilloscope (AN926)
Part 11: Use of DMA--ADC oscilloscope (AN706)
Part 12: Use of the SG DMA based on ADC module (AN926)


Part 13: Use the SG DMA based on DAC module  (AN9767)
Part 14: OV5640 camera acquisition display (1)
Part 15: OV5640 camera acquisition display (2)
Part 16: Binocular camera Ethernet transmission
Part 17: Use of 7 inch LCD module
Part 18: Use of 7-inch touch screen disaply
Part 19: SD card read and write operation BMP picture display
Part 20: SD card read and write operation camera capture
Part 21: Ethernet TransmissionADC Acquisition Based on AN926 Module
Part 22: Ethernet Transmission  ADC Acquisition Based on AN706 Module
Part 23: Ethernet Transmission--ADC Acquisition  Based on AN108 Module
Part 24: Remote update QSPI Flash based on UDP/TCP

Course_S3_HSL Application Tutorial
Part 01: Getting to Know HLS
Part 02: Status Indicator LED
Part 03: Floating Point Coprocessing
Part 04: Video Color Bar
Part 05: Realize PS and PL data interaction
Part 06: Video Frame Buffer Read and Write Management
Part 07: Image Scaling Overlay


Part 08: Character Overlay
Part 09: Image Contrast Adjustment
Part 10: Auto Focus
Part 11: Edge Detection
Part 12: Corner Detection
Part 13: Fast Fourier Transform

Course_S4_Linux Application Tutorial
Part 01: QT application on ZYNQ
Part 02: OpenCV Application (USB Camera Display)
Part 03: Binocular Camera Module OpenCV Display
Part 04: Touch screen module application


Part 05: AXI DMA Read and Write Test
Part 06: DMA-based ADC Waveform Display  (AN926)
Part 07: DMA-based ADC Waveform Display  (AN706)
Part 08: Autorun petalinux application
Part 09: Appendix - Linux Common Commands



产品套餐




FPGA Board

AN9767 Collection Package

AN706 Collection Package

AN9238 Collection Package

Video Package

Luxury Package

FPGA Board

Downloader Cable USB

AN9767









AN706









AN9238









Binocular Camera









7-inch LCD











套餐配套模块,点击了解更多

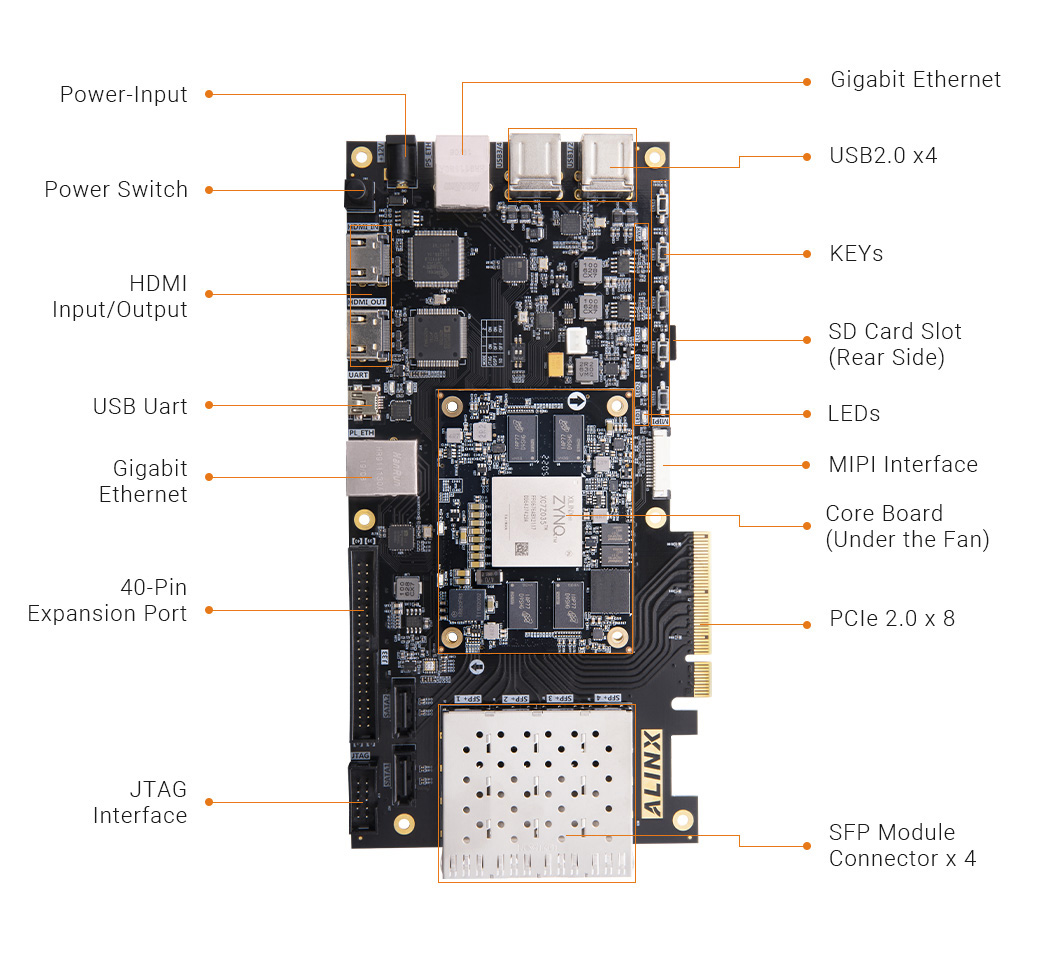

Key Features

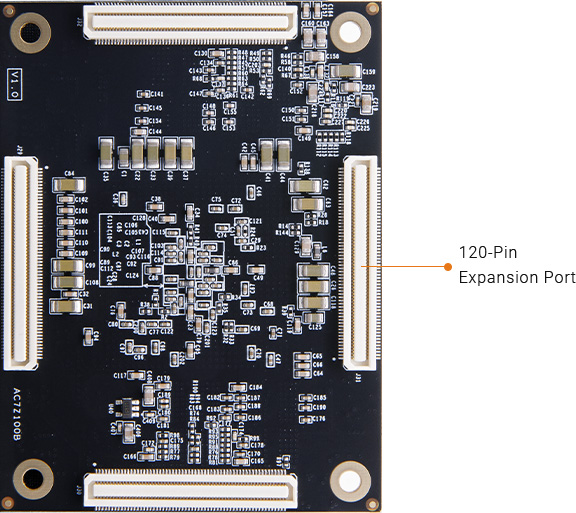

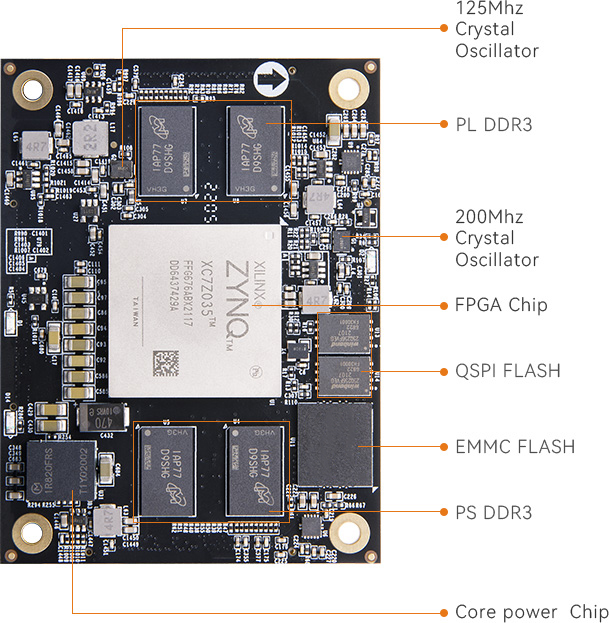

·Core Board SOM




*Learn More about the Core Board, Click to View >

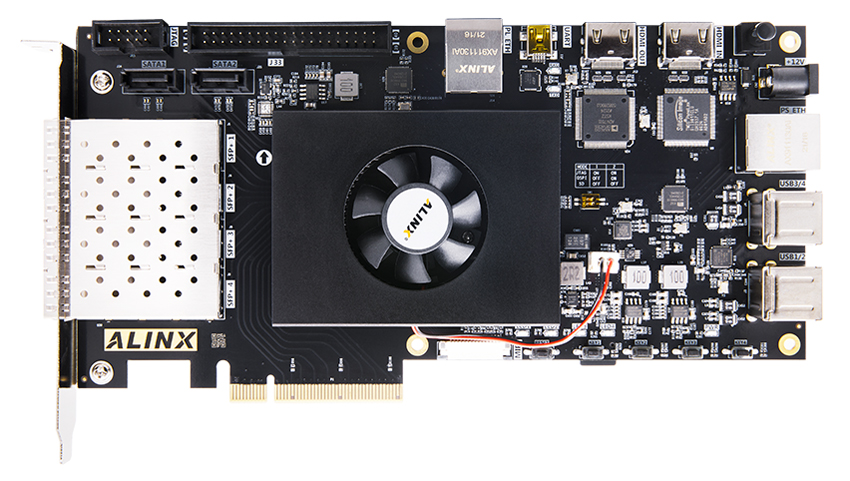

·FPGA Board




Product Parameters

Core Board Parameters

FPGA Board

AX7Z035

FPGA Chip

XC7Z035-2FFG676I

Kernel

Dual-Core ARM Cortex-A9 Main Frequency 800MHz

PL -end RAM

1GB DDR3  Data Rate 1600Mbps

PS -end RAM

1GB DDR3 Data Rate 1066Mbps

Speed Grades

-2

Chip Level

Industrial Grade

Working Temperature

-40°C~85°C

Logic Cells

275k

Look Up Tables (LUTs)

171900

CLB Flip-Flops

343800

Multiplier

900

 Transceivers

8-Channels Support PCIE Gen2 x 8

Block RAM

17.6Mbit

MIO

37

PL IO

144

Voltage Adjustable IO

96

LVDS

48 Pairs

Interface and Function

DDR3

32bit Bus, Data Rate 1066Mbps

QSPI Flash

512Mbit QSPI FLASH, Used as FPGA User Data Storage

EMMC Flash

8GB, Used as a Large-Capacity Storage Device in the ZYNQ System

Transceivers

8GTX,Each up to 6.25Gb/s, Used for SFP and PCIe Data Communication

SFP Interface

4-way High-Speed SFP Interface, the Receiving and Transmitting Speed of each Channel is up to 10.3125Gb/s

PCIe 2.0

AX7Z035 PCIe 2.0 x4, AX7Z100 PCIe 2.0 x8 Data Transmission Interface Single Channel Communication Rate up to 5GBaud

Ethernet Interface

Two 10/100M/1000M Ethernet RJ-45 Interfaces for Data Exchange

JTAG

Standard JTAG Port for Debug and Download of FPGA Program

HDMI

HDMI Video Input and Output Interface, up to 1080P@60Hz Support 3D Output and Data Input in Different Formats

USB 2.0 x 4

Used for Connect USB Peripherals such as Mouse, Keyboard.

USB Uart

Used for Serial Communication with PC or External Devices

Crystal Oscillator

33.333Mhz Provide Stable Clock Source for the PS System
200Mhz Provide DDR Reference Clock for the PL Logic
125Mhz Provide Reference Clock for the GTX Transceiver

Micro SD Card Slot

SD TF Card to Store Operating System Image and File System

LED

9 LEDs lights, 2 LEDs in the Core Board, 7 LEDs in the Carrier Board.

KEYs

5 Keys and 1 Reset Key, 4 PL User Keys

40-Pin Expansion Ports

Two 40-Pin Expansion Ports (0.1 inch Pitch), Can be Connect with Various ALINX Modules (Binocular Camera Module, TFT LCD Screen, Camera, AD/DA and Other Modules).

Power Supply Parameters

Voltage Input

+12 V DC

Current Input

Max. Current 2A

Package List

FPGA Board

1

USB Downloader Cable

1

Mini USB Cable

1

DC Fan (Fixed on the Board)

1

12V Power Adapter

1

Card Reader

1

TF Card

1

PCIe Fence

1

Structure Size

Size Dimension

Core Board 3.15 inch x 2.36 inch, Carrier Board 9.25 inch x 4.33 inch

Number of Layers

12-Layer Core Board PCB, 4-Layer Carrier Board PCB





Data Transmission Processing

4 High-Speed SFP Interfaces

Industrial Ethernet, Video Transmission Gigabit Ethernet and SFP Communication High-Speed Data Transmission Exchange

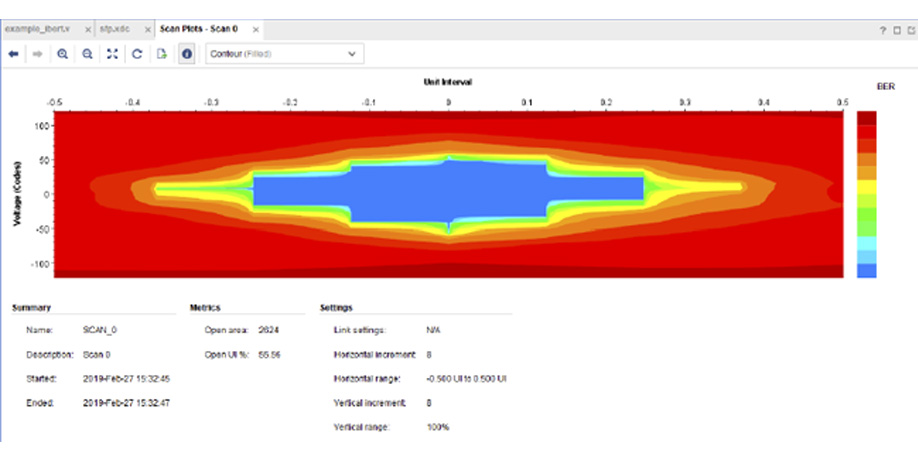

Optical Fiber Test Eye Diagram Each Optical Fiber Data Communication is up to 10Gb/s


Support PCIe 2.0 Standard

PCIE High-Speed Data Transmission

Meet PCIe Data Transmission and Video Image Processing

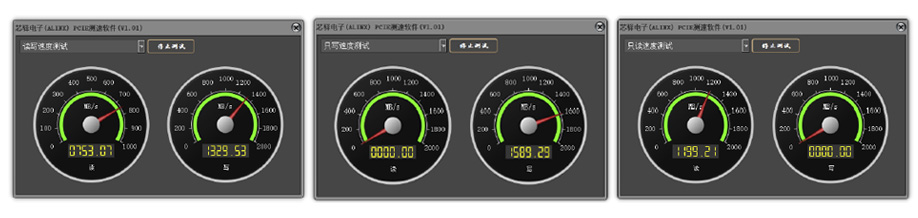

PCIe 2.0 x4 Read and write test

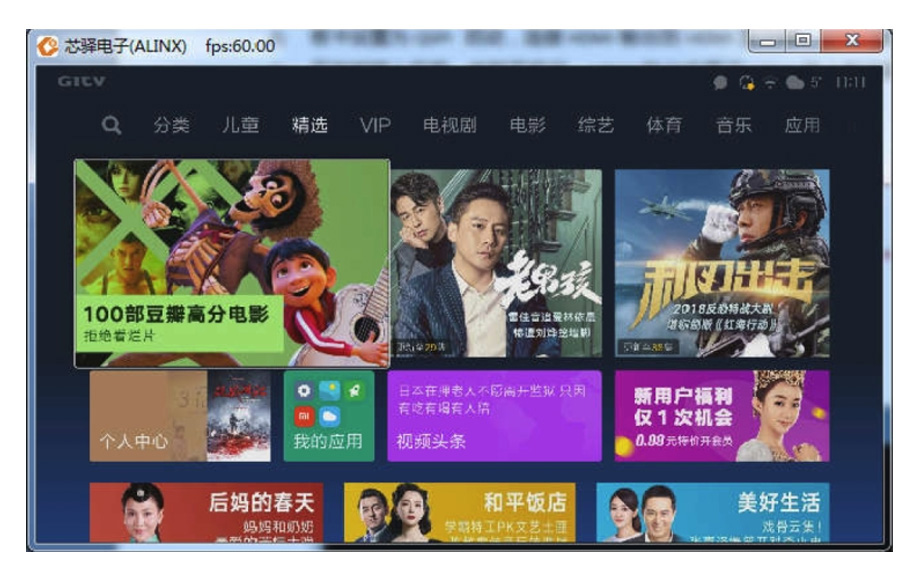

HDMI Video Input to PCIe Capture Display

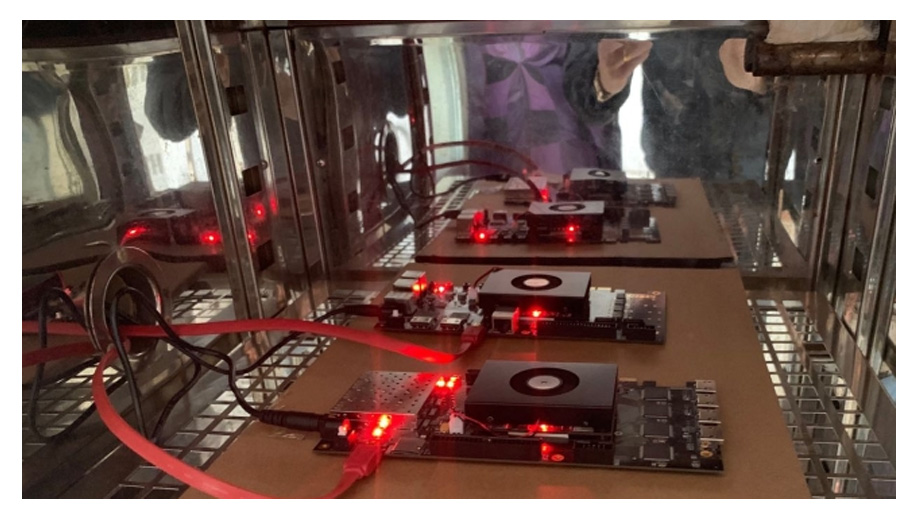

Industrial Grade Core Board

Working Temperature -40℃ to 80℃

PASS High and Low Temperature Test

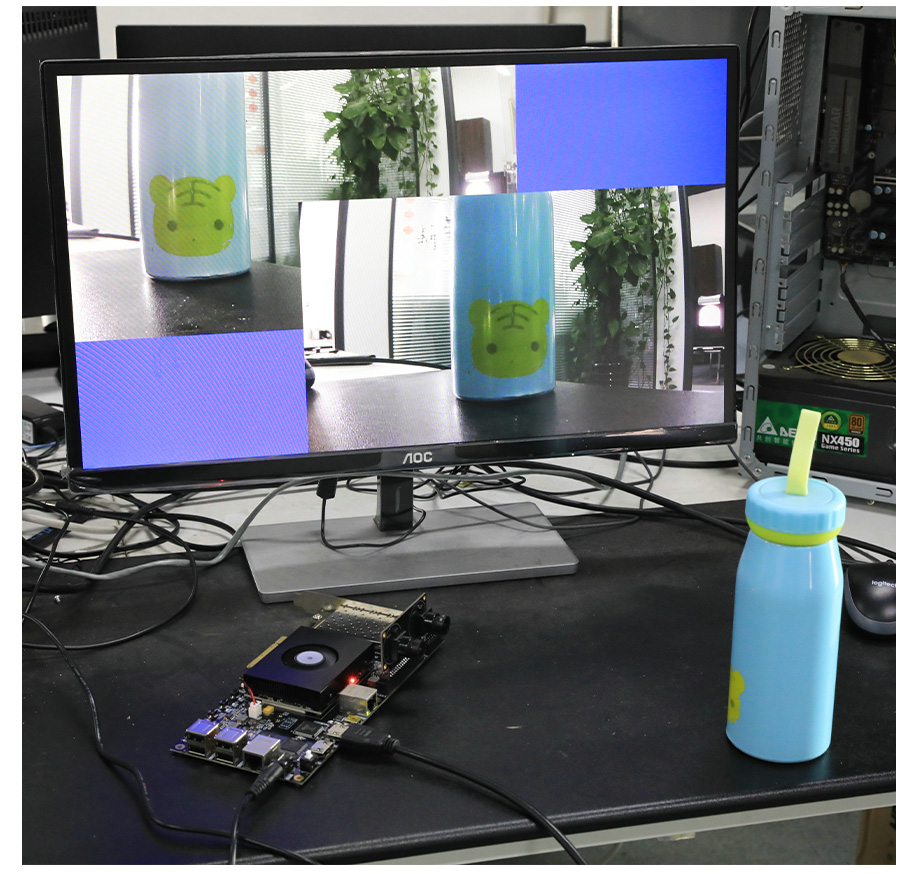

Binocular Camera Module Collection

Video Image Processing and Recognition

Security, Video Image Collection and Transmission Data Processing, Face Detection

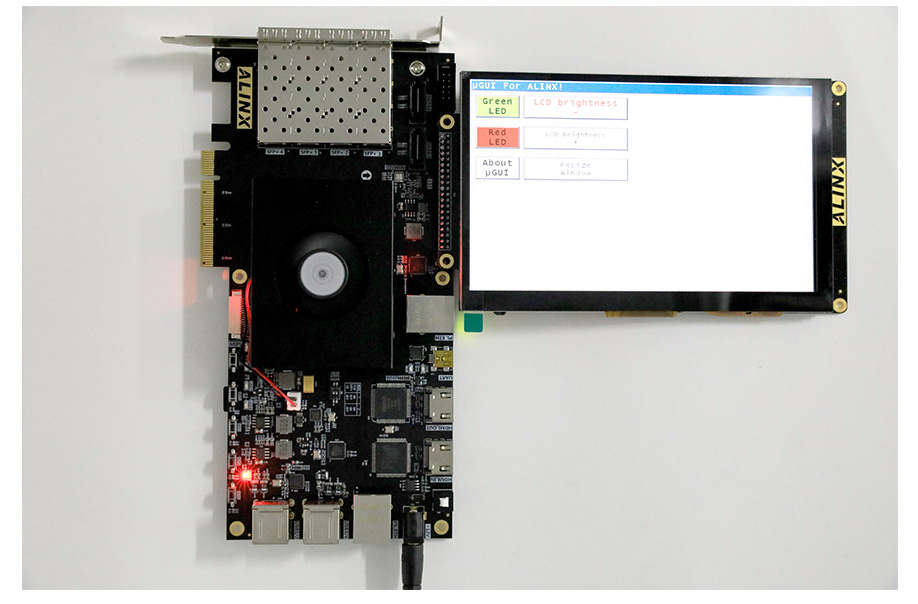

7-inch Capacitive Screen Module

Touch Capacitive Screen UGUI

Develop and Manage the System Interface


Data Collection Display

Signal Data Acquisition System

AN9767/AN706 Module On-Board Demo


*The Signal Source Output Signal is Connected to the AN9767 Module,  and the Waveform Signal is Displayed through the Oscilloscope
*The Signal Source Output Signal is Connected to the AN706 Module,  Run the System to Draw the Waveform Data, and is Displayed to the  Monitor through the HDMI Interface of the FPGA Development Board
