Xilinx Zynq UltraScale+ MPSoC FPGA High-end FPGA Board

Quad Core ARM® Cortex-A53+ Dual Core ARM Cortex™-R5

Mali-400 MP2 GPU，16nm FinFET+ Programmable Logic Integrated H.264 / H.265 video codec, codec up to 4Kx2K (60fps) videc Apply to Multimedia, Automotive ADAS, Surveillance, AI Intelligence Cloud Computing, High-speed Data Exchange and Storage and other Embedded Vision

·ARM CPU
4 x ARM CORTEX-A53 + Dual Core ARM CORTEX-R5
·GPU Graphics Processor
Mali™-400 MP2 GPU

·5GB DDR4
PS 4GB DDR4、PL 1GB DDR4
·FLASH Storage
8GB EMMC FLASH、64MB QSPI FLASH

key Features

Corresponding Development Board

·AXU5EV-E

*Learn about the corresponding development board, Click to see details>>

·AXU5EV-P

*Learn about the corresponding development board, Click to see details>>

Product Performance

Main Parameters

Core board

ACU5EV

FPGA Chip

XCZU5EV-2SFVC784I

Processor Core

4 x Cortex™-A53，1.333GHz，Dual Core Cortex™-R5, 533MHz

Processor Core

Mali™-400 MP2

RAM

PS DDR4, 4GB, 64bit, 2400Mbps
PL DDR4, 1GB, 16bit, 2133Mbps

PS-end High Speed Connection

PCIe® Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet

PS-end General Connection

2xUSB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO

PL PCIe Gen3

PCIe Gen3 x4

PL GTH Transceiver

12.5Gb/s x4

Chip Level

Industrial Grade

Temperature

-40°c~85°c

Speed Grades

-2

Logic Cells

256K

Look Up Tables (LUTs)

117K

DSP Slices

1248(18x25MACCs)

CLB Flip-Flops

234K

Block RAM

5.1Mb

EMMC FLASH

8GB

QSPI FLASH

256Mbit

HP I/O

HR I/O

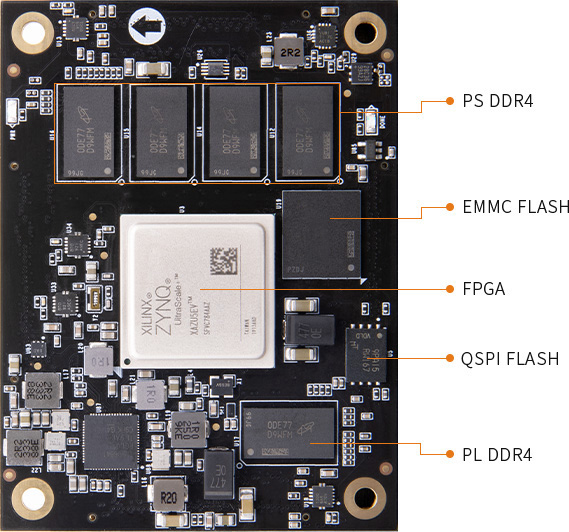

Interface and Function

VCU

Video Codec Unit (VCU), Integrated H.264 / H.265 video codec

QSPI Flash

256 Mbit, Used as FPGA User Data Storage

EMMC Flash

8GB, Used as Large-Capacity Storage System

40-120 Pin Expansion Ports

Panasonic Industrial Grade High-Speed Inter-Board Connectors

Ｃrystal Oscillator

33.333MHz Provide for the PS system
200MHz Provide DDR Reference Clock for the PL Logic

Power Supply Parameters

Voltage Input

+5 V DC

Package List

FPGA SoM Board

Structure Size

Size Dimension

3.15 inch x 2.36 inch

Connector Height

0.12 Inch

Number of Layers

16-Layer Core Board PCB


XILINX VITIS-AI DPU

AI Recognition and Detection, Deep Computational Learning

Intelligent identification and detection, image and video processing, security monitoring, machine vision, fire monitoring, traffic safety, smart construction site, smart hotel, smart agriculture, Internet of things
