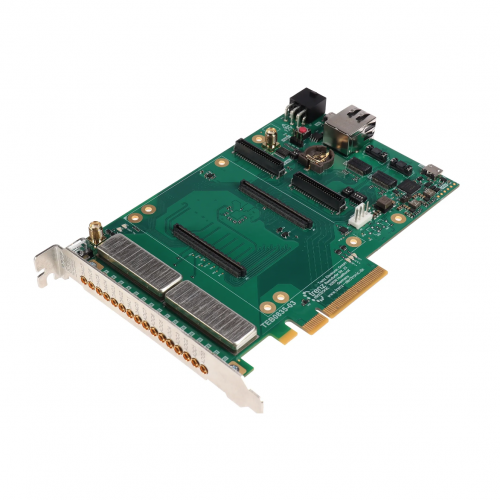

The TEB0835 is a carrier for Trenz Electronic's TE0835 module which is based on Xilinx UltraScale+ RFSoC. It is equipped with a microSD card reader, microUSB2.0, 21x UMCC connectors and six SMD connectors for clocks and ADC/DAC inputs/outputs, six green user LEDs, reset push button, DIP switch for mode, battery holder, FT2232H FTDI,  programmable clock generators and a temperature sensor IC. The carrier provides PCIe connector as well.

Key Features

Designed for

• TE0835 RFSoC series

RAM/Storage

• 4 Kb EEPROM

On Board

• Programmable clock generator
• I2C switch IC
• 6 x user green LEDs
• 16 x RF transformation
• Reset push button
• Temperature sensor
• FT2232H FTDI
• SDIO port expander
• 2 x DIP switch
• Pin headers
• PCIe 6 connector

Interface

• 21 x UMCC connectors
• 6 x SMA connectors
• 2 x Micro USB2.0
• RJ45 LAN socket
• Micro SD card socket
• 2 x UEC5 connectors
• 2 x UCC8 connectors
• PCIe x8 card
• 2 x Samtec Razor Beam SS5 (2 x 80 pol) Board to Board connectors

Power

• 12V input supply voltage

Dimension

• 10.66 x 16.76 cm

Scope of Delivery

• 1 x TEB0835-02-A Trenz Electronic PCIe Baseboard for Trenz Electronic TE0835 RFSoC

Additional Information

• Manufacturer's article number: TEB0835-02-A
• Trenz Electronic TEB0835 Wiki
• Support Forum
