Product information "CYC1000 with Cyclone 10 FPGA, 8 MByte SDRAM"

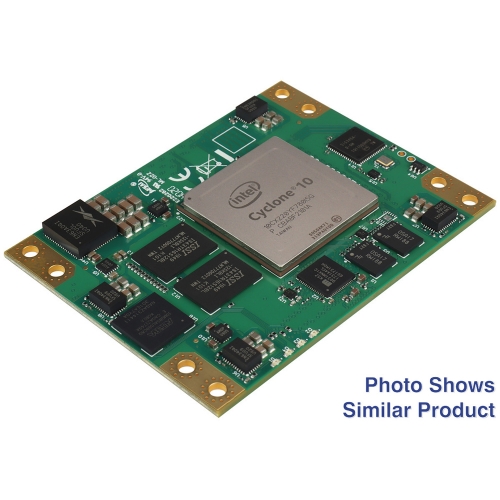

The Trenz Electronic TEI0003-02 is a small and powerful FPGA module integrating an Intel Cyclone 10 LP FPGA, 8 MBByte SDRAM, 8 MByte Flash and a LIS3DH 3-axis sensor.
- Intel Cyclone 10 LP FPGA:
25 kLE, 66 Memory blocks (9K), 594 Memory blocks (Kb), 18 x 18 multipliers -> 66
- 8 MByte SDRAM
- 2 MByte Flash (EPCQ16A)
- LIS3DH 3-axis Sensor
- 21 I/O Arduino MKR compatible headers
- PMOD: 2x6 Pin support
- 8 configurable + 2 status LED
- 2 Button (Switch)
Default assembly variant: 10CL025 with 25kLE
Possible variants: 10CL006, 10CL010, 10CL016
Other assembly options for cost or performance optimization plus high volume prices available on request.
- 1 x CYC1000 REV02 FPGA module with user manual
The online pictures of this product are not a legally binding offer, but are symbol pictures for illustration and presentation only.
All modules produced by Trenz Electronic are developed and manufactured in Germany.
Related links to "CYC1000 with Cyclone 10 FPGA, 8 MByte SDRAM"
Downloads REV02 - PCB Revision PCN - Product change notifications Structure and content of the Trenz Electronic Download page:
|PCN||Product change notifications: Important changes between hardware revisions|
|REV0x||Documents and source files sorted by PCB revision. |
Connector Pinout Viewer/XDC-Generator available on TE Master Pinout, as well as a additional informations on All Trenz Electronic SoMs
|Documents||PDF documents, like Technical Reference Manual, Schematics, Assembly Diagrams and...|
|HW Design||Relevant files for PCB-Design, like PCB-STEP-Model, Cooler-STEP-Model, Trace-length, Altium libraries / projects (only for selected carrier boards), and ...|
