The Video and Embedded Evaluation Kit - Multi-touch, Second Edition for Academic User / P0471
판매가
1,265,000 <관세ㆍ부가세 포함>
구매제한
옵션당 최소 1개
구매혜택
할인 : 적립 마일리지 :
배송비
0원 / 주문시결제(선결제) 조건별배송
택배
방문 수령지 : 경기도 성남시 중원구 사기막골로 99 성남센트럴비즈타워2차 B동 913호
상품코드
1000617500
제조사
Terasic Technologies
VEEK-MT2 Academic
0
총 상품금액
총 할인금액
총 합계금액

상품상세정보


▶ Academic Product

  • 아카데믹 제품은 학교 지원 프로그램으로 일반 제품과 동일한 제품을 학교에 할인된 가격으로 판매하는 제품입니다.
  • 할인된 가격으로 판매되는 아카데믹 제품은 일반 제품 구매와 달리 아카데믹 인증을 받아야 합니다.
  • 제품 주문결제 후 아카데믹 인증을 위해서 아래와 같은 아카데믹 정보(영문)를 sales@inipro.net으로 보내주시면 개별적으로 처리됩니다.
  • 아카데믹 정보 (※ 영문으로 정확하게 작성 부탁드립니다.)
    • 학교 :
    • 학과 :
    • 담당교수 이름 :
    • 담당교수 연구실 전화번호 :
    • 담당교수 학교계정의 이메일 :
    • 담당학생 이름 :
    • 담당학생 연구실 전화번호 :
    • 담당학생 학교계정의 이메일 :

Overview

The Video and Embedded Evaluation Kit - Multi-touch, Second Edition (VEEK-MT2) is a comprehensive design environment with everything embedded developers need to create processing-based systems. VEEK-MT2 delivers an integrated platform that includes hardware, design tools, intellectual property (IP) and reference designs for developing embedded software and hardware platform in a wide range of applications. The fully integrated kit allows developers to rapidly customize their processor and IP to best suit their specific application. The VEEK-MT2 features the DE2-115 development board targeting the Cyclone IV E FPGA, as well as a capacitive LCD multimedia color touch panel which natively supports 5 point touch and multi-touch gestures. A 8-megapixel digital image sensor, ambient light sensor, Gyroscope, Magnetometer, and 3-axis accelerometer make up the rich feature-set.





Specification

DE2-115 Development Board

Cyclone IV EP4CE115 FPGA

  • 114,480 logic elements (LEs)
  • 432 M9K memory blocks
  • 3,888 Embedded memory (Kbits)
  • 266 Embedded 18 x 18 multipliers
  • 4 General-purpose PLLs
  • 528 User I/Os

Configuration

  • EPCS64 serial configuration device
  • On-board USB-Blaster circuitry
  • JTAG and AS mode configuration supported

Memory Devices

  • 128MB SDRAM
  • 2MB SRAM
  • 8MB FLASH with 8-bit mode
  • 32Kbit EEPROM

Switches and Indicators

  • 18 switches and 4 Push-buttons
  • 18 red and 9 green LEDs
  • Eight 7-segment displays

Audio

  • 24-bit encoder/decoder (CODEC)
  • Line-in, line-out, and 3.5mm jacks

Character Display

  • 16x2 LCD module

On-board Clocking Circuitry

  • Three 50MHz oscillator clock inputs
  • SMA connectors (external clock input/output)

SD Card Socket

  • Provides SPI and 4-bit SD mode for SD card access

Two Gigabit Ethernet Ports

  • Integrated 10/100/1000 Ethernet

172-pin High Speed Mezzanine Card (HSMC)

  • Extension for LCD and camera module
  • Configurable I/O standards (voltage levels: 3.3/2.5/1.8/1.5V)

USB Type A and B

  • Provides host and device controller compliant with USB 2.0
  • Support for data transfer at full-speed and low-speed
  • PC driver available

40-pin Expansion Port

  • Configurable I/O standards (voltage levels: 3.3/2.5/1.8/1.5V)

VGA-out Connector

  • VGA DAC (high speed triple DACs)

DB-9 Serial Connector

  • RS-232 port with flow control

PS/2 Connector

  • PS/2 connector for connecting a PS/2 mouse or keyboard

Remote Control

  • Infrared receiver module

TV-in Connector

  • TV decoder (NTSC/PAL/SECAM)

Power

  • 12V DC input
  • Switching and step-down regulators LM3150MH

Capacitive LCD Multi-touch Screen

  • 7-inch TFT LCD with pixel resolution of 800*480
  • 16 million colors (24-bit RGB)
  • LED backlight
  • 5 point Capacitive Touch

8-Megapixel Digital Image Sensor

  • 3,264H x 2,448V active pixels with Bayer color arrangement
  • Sensitivity 940mV/Lux-sec
  • Voice Coil Motor for focus control

Ambient Light Sensor

  • Precise illumination measurement under diverse lighting conditions
  • Programmable interrupts
  • 16-bit digital output with I2C fast-mode at 400 kHz
  • Programmable analog gain and Integration time
  • 50/60Hz lighting ripple rejection

MPU9250 Nine-Axis Sensors

Accelerometer Features

  • Digital-output triple-axis accelerometer
  • Programmable full scale range of ±2g, ±4g, ±8g and ±16g and integrated 16-bit
  • Self-test

Gyroscope Features

  • Digital-output X-, Y-, and Z-Axis angular rate sensors
  • User-programmable full-scale range of ±250, ±500, ±1000, and ±2000°/sec and integrated 16-bit ADCs
  • Self-test

Magnetometer

  • 3-axis silicon monolithic Hall-effect magnetic sensor with magnetic concentrator
  • Wide dynamic measurement range and high resolution with lower current consumption.
  • Output data resolution of 14 bit (0.6μT/LSB) or 16 bit (15μT/LSB)
  • Full scale measurement range is ±4800μT
  • Magnetometer normal operating current: 280μA at 8Hz repetition rate
  • Self-test function with internal magnetic source to confirm magnetic sensor operation on end products


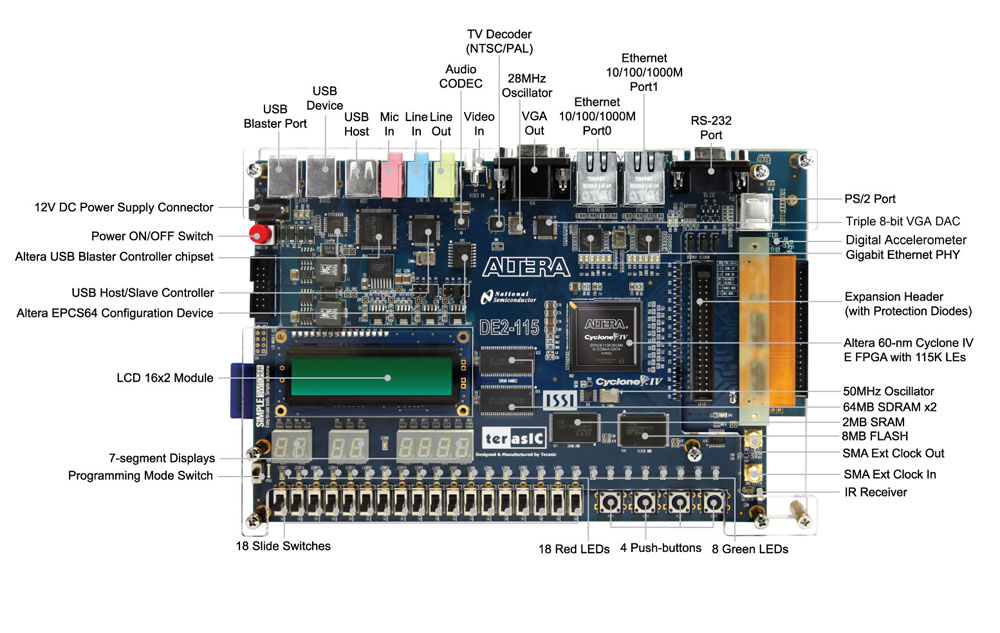

Layout

Resources





Download

Documents

TitleVersionSize(KB)Date AddedDownload
VEEK-MT2 User Manual 1.0 40022016-07-04
DE2-115 User manual89102016-05-17

CD-ROM

TitleVersionSize(KB)Date AddedDownload
VEEK-MT2 CD-ROM 1.0.2 2016-08-05

Please note that all the source codes are provided "as is". For further support or modification, please contact Terasic Support and your request will be transferred to Terasic Design Service.
More resources about IP and Dev. Kit are available on Altera User Forums.



Demonstrations

  • Video and Embedded Evaluation Kit - Multi-touch Camera
  • Video and Embedded Evaluation Kit - Multi-touch Picture Viewer
  • Video and Embedded Evaluation Kit - Multi-touch Painter
  • Video and Embedded Evaluation Kit - Multi-touch Digital Accelerometer
  • Video and Embedded Evaluation Kit - Multi-touch Digital E-Compass
  • Video and Embedded Evaluation Kit - Multi-touch VIP
  • Video and Embedded Evaluation Kit - Multi-touch_Selector
  • Video and Embedded Evaluation Kit - Multi-touch_VIP_Camera
  • PS2 Mouse
  • IR Receiver
  • TV Box
  • SD Card Reader
  • SD Card Music Player
  • A Karaoke Machine
  • Music Synthesizer
  • Audio Recording and Playing
  • USB Paintbrush
  • USB Device
  • Web Server

VEEK-MT2 tools

Video and Embedded Evaluation Kit - Multi-touch​, Second Edition

DE2-115 Control Panel

Allows users to access various components on the DE2-115 platform from a host computer.

DE2-115 System Builder

A powerful tool that comes with the VEEK-MT2 (originally developed for DE2-115). This tool allows users to create customizable Quartus II projects depending on their requirements for the VEEK-MT2. The top-level design file, pin assignments, and I/O standard settings for the DE2-115 board will be generated automatically from this tool. In addition, through the GPIO and HSMC connectors you can select various daughter cards in conjunction with the tPad using the DE2-115 System Builder.

VEEK-MT2 Sensing Demonstration

This design utilizes an embedded NIOS II cpu to communicate with the on-board digital accelerometer as well as the ambient light sensor. The accelerometer outputs as a level display, and the readings for the ambient light are displayed in the upper left-hand corner.

VEEK-MT2 Painter Demonstration

This reference design showcases VEEK-MT2's sensitive capacitive touch-screen capabilities. Supporting multi-paint coordinates and multi-touch gestures, this demonstration allows users to paint with five fingers. Gestures that are drawn on the canvas are displayed in the gesture indicator box left of the color palette.

VEEK-MT2 E-Compass Demonstration

This demonstration shows an e-compass on the LCD panel based on information measured by accelerometer and magnetometer in the MPU9250.

Kit Contents

Demo



*if the film is unavailable, please kindly try another link below:

https://youtu.be/rSY6zmjALjw
